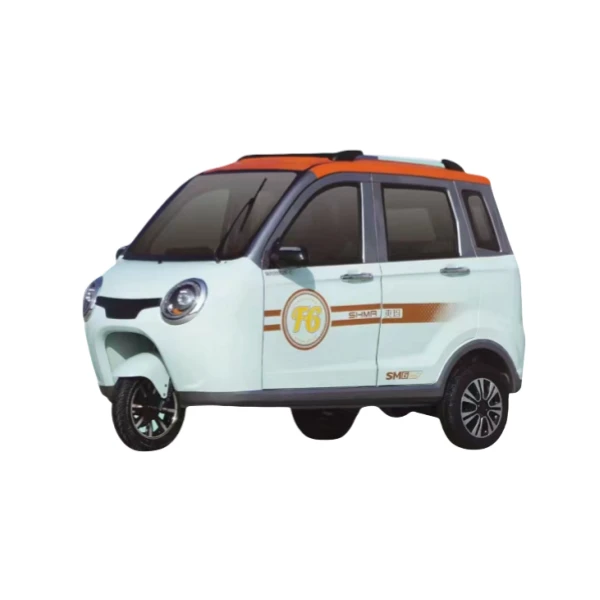

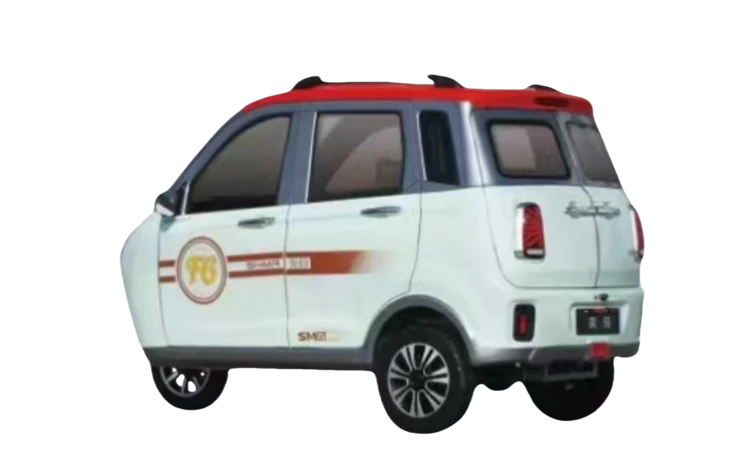

Electric Passenger Tricycle

 Parameter list of Electric passenger tricycle

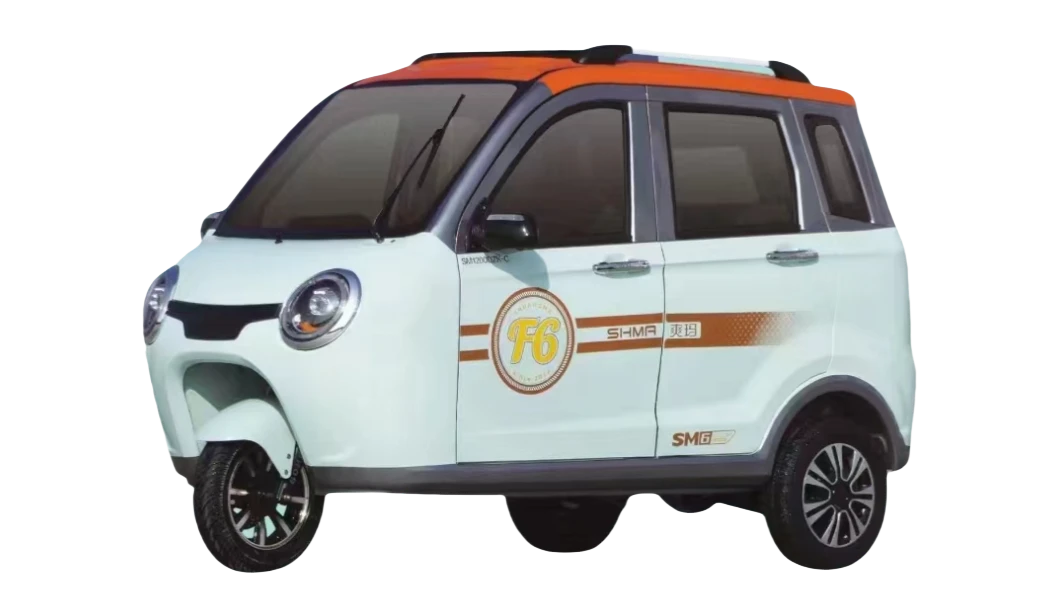

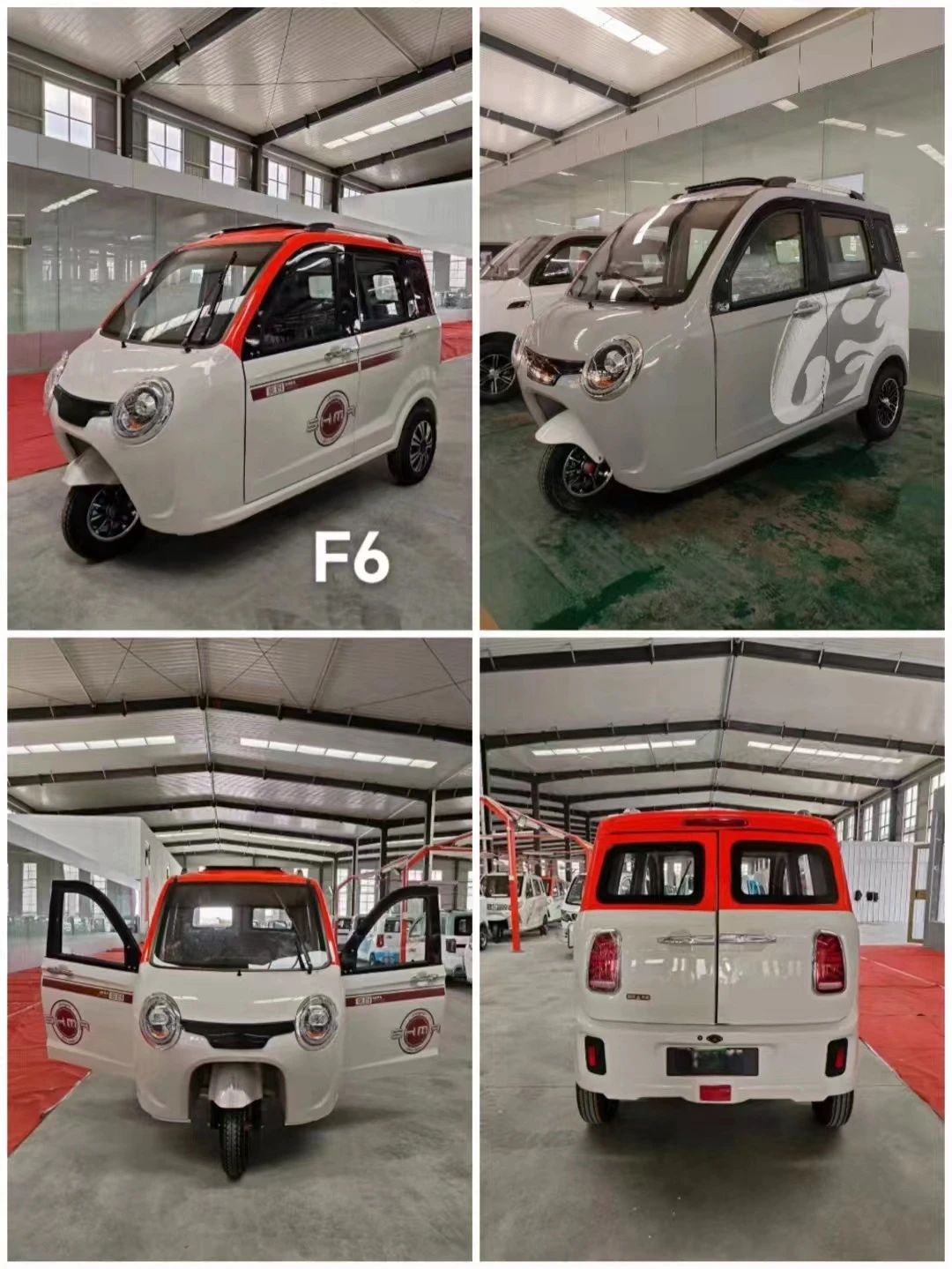

Fashionable design for 2024 new model



Electric passenger tricycle has new fashionable design for 2024 model year,streamline lead headlight with automatic functions,the waistline of electric passenger tricycle improve whole tricycle's innervation.Six doors design make the tricycle more convenient to get on and off,specially for the rear side double doors which could open 180 ,it's very easy to move luggage.

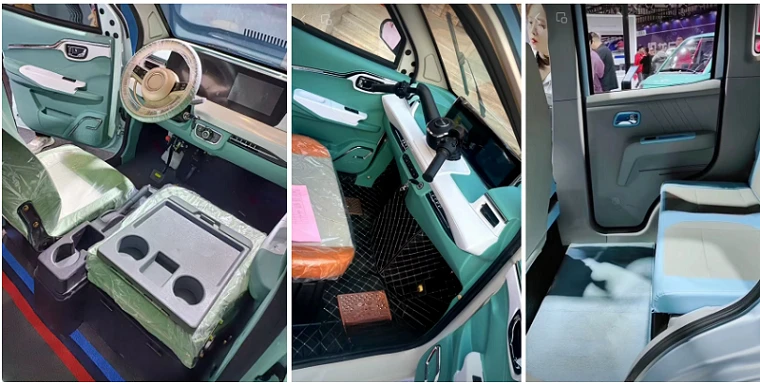

Beautiful interior space design



Electric passenger tricycle has good design for the Interior space design,it has two optional for the dashboard:handle steering wheel and disc steering wheel,front first line has one driver seat or driver seats+vice driver seats together.rear line room is enough for two person comfortable seats.it's mostly biggest room inside in the same arrange tricycles.

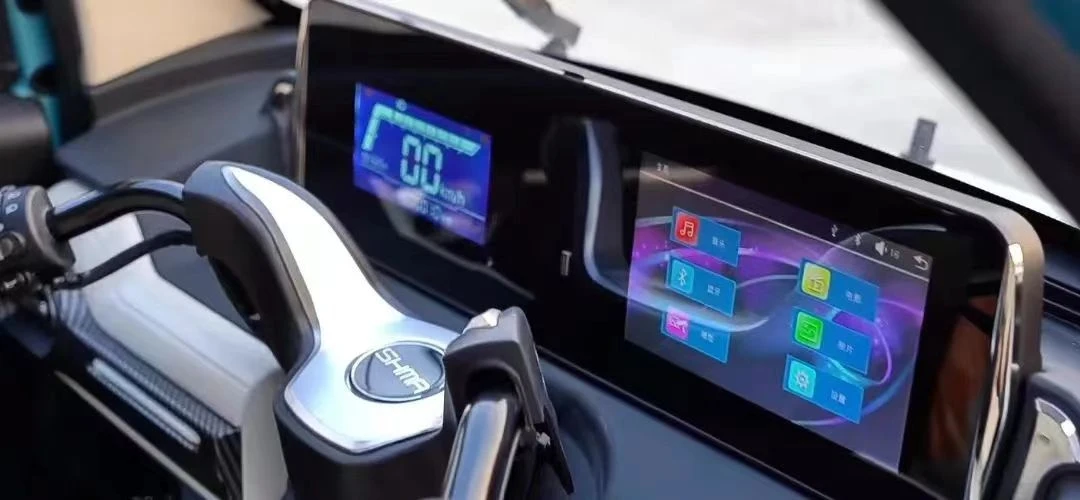

7 inch color LED Screen instrument



Our electric passenger tricycle has high definition 7 inch touch screen,it has the mp5 and rear reversing review,the tricycle also has blue tooth function to easily connecting the mobile phone music.

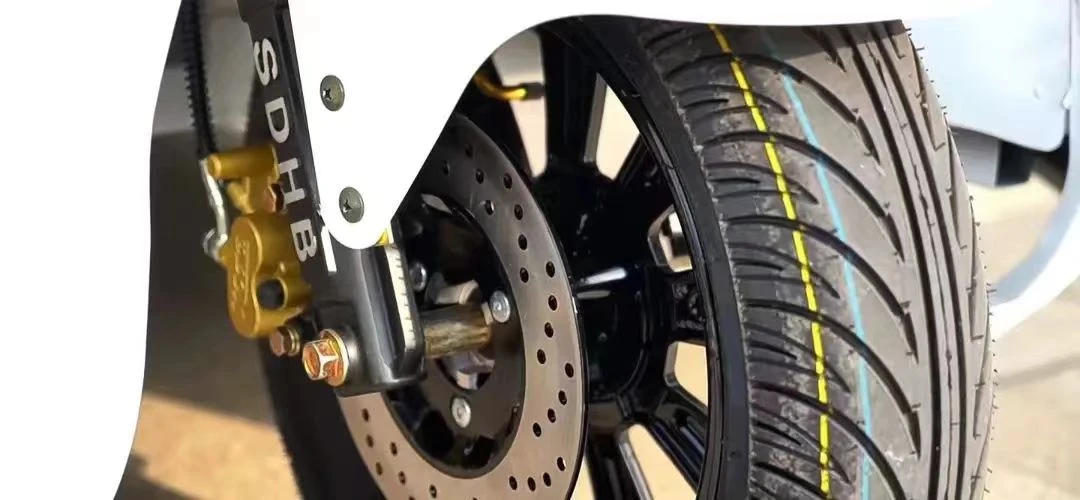

Three wheel full disc brake system



Electric passenger tricycle's full three wheel is all disc brake system,and SDHB shock absorb,it can supply the tricycle more efficient brake and also good suspension for the rough road.

Battery capacity is optional and customized



Our electric passenger tricycle's battery system has two optional:Lead acid battery or Lithium ion battery,the battery is 72v and 80-120ah,the motor of the tricycle has 1500w,2000w,3000w three optional,we can customized our products battery and motors according to client's Endurance mileage and speed demand.





Electric tricycle Advantage

Electric tricycle has the advantages of environmental protection and energy saving. Compared with traditional fuel tricycles, electric tricycle do not need to burn fuel, so they do not produce harmful gases and smoke, and cause less environmental pollution. At the same time, electric tricycles have low energy consumption and can travel a long distance on a single charge, which greatly reduces the cost of use.

Secondly, electric tricycle are convenient. Electric tricycle are relatively small in size and can easily travel through the streets and alleys of the city, avoiding the trouble of traffic jams. In addition, the operation of the electric tricycle is simple and easy to understand, no special driving skills are required, and the elderly and children can also drive it easily.

Thirdly, electric tricycle have high carrying capacity and stability. The electric tricycle has a strong body structure and strong carrying capacity, and can carry more goods or people. At the same time, the electric tricycle has a low chassis, good stability, and is not easy to roll over during driving, ensuring the safety of passengers.

Finally, electric tricycle also have the advantage of being economical and practical. The price of electric tricycles is relatively low and affordable for ordinary families. Moreover, electric tricycles have low maintenance costs and only require regular battery replacement and simple maintenance to maintain good condition.

What is electric passenger tricycle?

Electric Tricycle is a three-wheeled transport vehicle powered by batteries and driven by a motor for pulling goods or people. The electric tricycle uses a tubular large-capacity, left and right lining, deep discharge, and traction battery, which can adapt to the requirements of continuous discharge for long-term work. The battery can be used normally for two years without reducing its internal capacity.

The electric tricycle motor adopts a DC series traction brush or brushless motor. The motor is equipped with a speed-regulating and force-increasing device, which is not easily damaged during normal use and ensures strong output power.

As an important energy source with environmental protection, cleanliness and high conversion rate, electricity is widely used in production and life. Using electricity as an application to drive the replacement of transportation tools, promote the low-carbon development of the transportation industry, reduce transportation costs, save energy and protect the environment is one of the important research topics of countries around the world. After decades of development, it has been applied in many fields such as electric city buses, electric transportation vehicles for factories and mines, electric urban sanitation cleaning vehicles, engineering, tunnels, and subway construction special vehicles.

Electric tricycle can flexibly travel between narrow roads with their strong applicability, maneuverability, simple maintenance, convenient repair, and low price. Electric tricycle have a reversing switch, which can easily realize the reverse and forward driving function. This is very practical in narrow alleys and lanes, and it is very convenient for driving and parking. It is widely used in short-distance transportation fields such as families, urban and rural areas, individual rentals, factories, mining areas, sanitation, and community cleaning.

The different type of Electric tricycle

Electric tricycle is divided into household, freight, and factory types according to their uses. Due to different uses, the technical standards used are also different. Most household electric tricycles use side wheel motors and external frames (the frames are outside the wheels). This type of vehicle has no large axle and a light load capacity, generally around 200KG. The motor is generally 350-500W, and the battery is 12V20AH. It is suitable for household and elderly mobility tools. There are also mid-mounted motors with large shafts (the large shaft is also called the rear axle or rear beam, which is the axle connecting the rear two wheels of the tricycle and an important part of the tricycle). This type of vehicle has good stability, and the mid-mounted motor drives the rear two wheels at the same time, and the start is smooth, this type of tricycle is generally more expensive.Our electric passenger tricycle is belonged to the mid-mounted motor with rear axle.

Freight electric tricycles are also divided into two types, one is a motorcycle type, and the configuration and style are similar to three-wheeled motorcycles. The mid-mounted motor has a large shaft and is equipped with a motor of more than 500W. The cargo capacity is generally 300-600KG, and it is equipped with a forward and reverse switch and a speed control system. The fastest speed on the road is about 35 kilometers per hour. One type is a motorized tricycle, which is mostly modified from a motorized tricycle. The rear axle and the car box are completely configured with a motorized tricycle. The load capacity is more than one ton. The speed can be adjusted by the gearbox. It is equipped with 4-5 120AH large-capacity batteries and a DC motor of more than 900W. There are cabs and no cabs. It can also be equipped with a hydraulic lifting device. It is used for loading and unloading bulk materials in the factory and for urban garbage removal.

The factory-type electric tricycle is generally used in a harsh environment. The motor and battery are required to be durable and can adapt to dust, high temperature, rugged roads and other environments. The frame material and welding process requirements are relatively high. The thickness of the frame pipe is more than 2.5MM, the diameter of the rear axle is more than 78MM, and the welding adopts plasma shielded welding. The welding density is high, the weld tensile strength is large, and it is not easy to break. It can adapt to the requirements of the factory operating environment. The most common applications of electric tricycles in factories include brick factory throwing carts, electric flatbed trucks, electric lifting and water transporting carts, etc. for brick factories; electric kiln loading carts and electric kiln unloading carts for brick factories, kiln factories, refractory factories, ceramic factories, roasting factories, etc.; electric transport vehicles, electric dump trucks, electric sanitation cleaning vehicles, etc. for engineering, tunnels, and sanitation. Electric transport vehicles and electric dump trucks are also used in flour mills, ore dressing plants, chemical plants, furnace charge plants, farms, wholesale departments, urban and rural households, rentals and other short-distance transportation.

Electric tricycle's Battery types and performance

1. Lead-acid battery (including lead-acid gel battery), cheap, stable performance, electric vehicles on the market use this type of battery

2. Lithium-ion battery (often referred to as lithium battery), expensive, unstable performance, prone to explosion, low safety factor. The lithium iron phosphate power battery being developed and used solves the safety problem.

Battery maintenance

1. The battery cannot be stored with low power. Low power means that if the battery is not charged in time after the power is used up, it is easy to cause sulfuric acid to salt, so that lead sulfate crystals adhere to the battery plates, blocking the channel of ions, causing charging to fail, and the battery capacity will decrease. The longer the idle time in the low power state, the more serious the battery damage. When the battery is idle, it should be charged once a month to extend the battery life.

2.The battery of the electric tricycle should be inspected regularly during use. If the mileage of the electric bicycle suddenly drops by more than ten kilometers in a short period of time, it is very likely that at least one battery in the battery pack has a short circuit phenomenon such as broken grid, softened plate, and falling of active material on the plate. At this time, you should go to a professional battery repair agency for inspection, repair or assembly in time. .

3. Do not discharge with high current. When starting, carrying people, and going uphill, it is best to use pedals to assist, and try to avoid instantaneous high current discharge. High current discharge can easily lead to lead sulfate crystallization, thereby damaging the physical properties of the battery plate. . .

4. Master the charging time. Under normal circumstances, the battery is charged at night, and the average charging time is about 8 hours. If it is shallow discharge (the mileage after charging is very short), the battery will be fully charged soon, and continued charging will cause overcharging, causing the battery to lose water and heat, and reduce the battery life. Therefore, it is best to charge the battery once when the discharge depth is 50%-60%. It can be converted into riding mileage during actual use. Perform necessary charging according to actual conditions to avoid harmful charging. . .

5. Prevent electric vehicles from being exposed to high temperatures. It is strictly forbidden to expose them to the sun. An environment with too high a temperature will increase the internal pressure of the battery and force the battery pressure limiting valve to open automatically. The direct consequence is an increase in the water loss of the battery. Excessive water loss will inevitably lead to a decrease in battery activity, accelerated plate softening, and fatal damage such as heating, bulging, and deformation of the shell during charging. . .

Electric tricycle's Maintenance

1.Before riding, check whether the battery box is locked and whether the lights on the display panel are normal.

2.When driving on a flooded road in rainy days, drive normally if the depth of the water does not exceed the center of the electric wheel. If the depth of the water on the road exceeds the center of the electric wheel, the electric wheel may seep water and cause malfunction.

3.The whole vehicle should not be placed in places with humid air, high temperature and corrosive gases to avoid chemical corrosion on the electroplated paint surface of metal parts.

4.The whole vehicle should be kept away from the sun and rain for a long time to avoid damage to the components in the controller, causing operation failure and accidents.

5.The structure of the electrical control part is complex and users should not disassemble or repair it without authorization. If the local charging voltage is unstable, the charger fuse is likely to blow. It is recommended to use an AC voltage stabilizer.

6.It is normal for the electric bicycle to feel heavy when reversing and to have a slight friction sound in the wheel hub when pushing forward.

7.Do not overload when riding, and do not place heavy objects or carry people to avoid damage to the battery and motor.

8.Lubrication of bicycles is an important part of bicycle maintenance. Depending on the usage, the front axle, rear axle, middle axle, flywheel, front fork, shock absorber pivot and other parts should be cleaned and lubricated every six months to one year (molybdenum disulfide grease is recommended). The transmission parts in the electric wheel hub have been coated with special lubricating oil, and users do not need to clean and lubricate them by themselves. If any abnormality is found, you can go to our company's special maintenance point for maintenance and repair.

Electric tricycle regular inspection and repair

includes checking whether all screws and nuts of the whole vehicle are firm, whether the control performance is good, whether the tires need to be replaced, whether the mechanical system is good, whether the battery capacity is up to standard, and the brush motor is repaired once a year. The specific maintenance contents are as follows:

1.Comprehensive debugging of the whole vehicle, check whether there are any hidden faults in the electrical control circuit and whether the electrical connection wires are damaged. If there are any, they should be eliminated on the spot;

2.Adjust the front and rear brakes to ensure that the brakes are flexible and reliable;

3.Check whether the steering of the handlebar is reliable, and whether there is any sliding between the handlebar and the front fork;

4.Check the battery regularly (once a month in summer and every 2-3 months in winter) to see whether the battery liquid level is below the mark. If the plate is exposed, add distilled water in time. Be careful not to add acid, because the electrolyte concentration of each battery has been adjusted according to the ratio when it leaves the factory. Adding acid will destroy the existing pH balance, cause plate corrosion, and affect the service life of the battery.

5.When using the rear axle gearbox for the first time, pay attention to adding gear oil to the rear axle gearbox. In the future, regularly check whether there is oil leakage, damage to the sealing gasket, or lack of lubricating oil in the rear axle gearbox, and replace the sealing gasket and add lubricating oil in time.

6.Lubricate the gearbox, motor sprocket, and chain regularly. If they are severely worn, they should be replaced in time to avoid affecting the use.

7.Tighten the bolts of the whole vehicle regularly, check whether they are loose or falling off, and apply anti-rust liquid appropriately to prevent the screws from rusting and causing difficulties in maintenance during production.

8.Clean and wipe the whole vehicle.

The main power source of electric tricycles comes from batteries. Most electric tricycle batteries are lead-acid batteries, so the life of the battery affects the driving distance of the electric tricycle.

The maintenance of the lead acid battery can be started from the following six aspects.

1. Correctly grasp the charging time. It is best to charge the battery once when the discharge depth is 60%-70%.

2. It is strictly forbidden to store the battery with low power. The low power state means that the battery is not charged in time after use. When storing the battery in the low power state, it is easy to sulfate. Lead sulfate crystals adhere to the plates, blocking the ion channels, causing insufficient charging and reduced battery capacity. The longer the battery is idle in the low power state, the more serious the battery damage. Therefore, when the battery is idle, it should be recharged once a month, so as to better maintain the battery in a healthy state.

3. Avoid high current discharge. When starting, carrying people, and going uphill, please use the pedal to assist, and try to avoid instantaneous high current discharge. High current discharge can easily lead to lead sulfate crystals, thereby damaging the physical properties of the battery plates.

4. Prevent exposure to the sun. An environment with too high a temperature will increase the internal pressure of the battery and force the battery pressure limiting valve to open automatically. The direct consequence is to increase the water loss of the battery. Excessive water loss of the battery will inevitably lead to a decrease in battery activity, accelerate the softening of the plate, heat the shell during charging, and cause fatal damage such as bulging and deformation of the shell.

5. Avoid heating of the plug during charging. The loose output plug of the charger and oxidation of the contact surface will cause the charging plug to heat up. If the heating time is too long, the charging plug will short-circuit, directly damage the charger and cause unnecessary losses. Therefore, when the above situation is found, the oxide should be removed or the connector should be replaced in time.

6. Regular inspection. During use, if the mileage of the electric vehicle suddenly drops by more than ten kilometers in a short period of time, it is very likely that at least one battery in the battery pack has a short circuit phenomenon such as broken grid, softened plate, and falling off of the plate active material. At this time, it is necessary to go to a professional battery repair agency for inspection, repair or matching in time. This can relatively extend the life of the battery pack and save expenses to the greatest extent.
