The Lead acid electric vehicle is low speed electric four wheel vehicles,it's suitable for urban individual shortage trip,it's convenience for travel and parking in city center nallow road.
The specification of this model is as below:
|
Specification |
EEC |
L6e-BP |
|
Top speed (Km/h) |
45 |
|
|
Gradeability |
20% |
|
|
Charging time |
6-8hours |
|
|
Range (km) 40km/h |
140 |
|
|
Electricity consumption, 100km, full load |
6 |
|
|
Basic |
Overall dimensions (L*W*H) mm |
2245*1290*1570 |
|
Wheelbase (mm) |
1500 |
|
|
Wheel track (mm) |
1100/ 1090 |
|
|
Min. ground clearance (mm) |
150 |
|
|
Curb weight (kg) |
635 (with battery) |
|
|
Seating capacity |
2 |
|
|
Motor |
Motor type |
AC motor |
|
Kw Rated Power |
3.5 |
|
|
Battery |
Rated Voltage (V) |
60 |
|
Battery |
Maintenance-free lead acid battery |
|
|
Battery quantity |
5 |
|
|
Battery capacity |
12V 120Ah |
|
|
Charger type |
Car charger |
|
|
Charging voltage (V) |
110~230 |
|
|
Gearbox |
Gears |
Auto gear |
|
Gear shift type |
Single reduction |
|
|
Differential case |
Yes |
|
|
Suspension |
Driving type |
Rear-wheel-drive |
|
Front suspension |
McPherson Independent |
|
|
Rear suspension |
Trailing-Arm Independent |
|
|
Body structure |
Load bearing frame |
Product Features Introduction

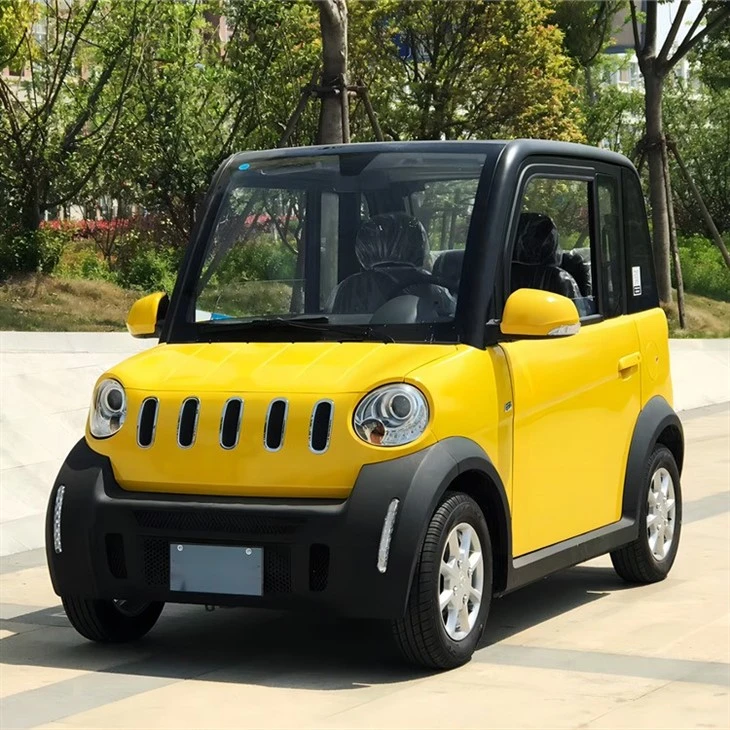

1) On the side of the Lead acid electric vehicle body, spacious Windows provide an excellent view for passengers. #Lead acid electric vehicle.

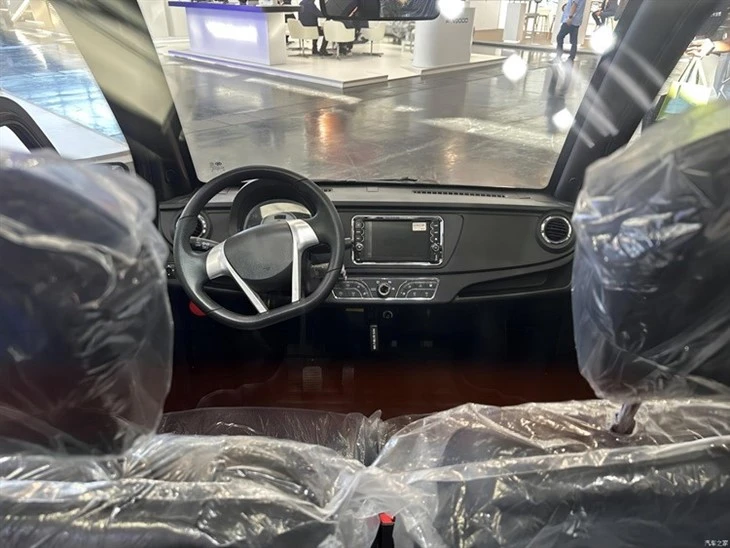

2) In terms of Lead acid electric vehicle size, its vehicle length reaches 2245mm and wheelbase is 1500mm, providing convenience for urban travel. In terms of interior, the new car seems to meet basic needs, with a central LCD screen for entertainment, and air conditioning. #Lead acid electric vehicle.
3) Lead acid electric vehicle has 40km/h constant speed endurance of 140km, maximum power of 3.5kW, using maintenance-free lead-acid battery. #Lead acid electric vehicle.
Technical Support
Our company has a multi-disciplinary, highly trained and efficient professional staff to provide high-quality service and support to all our customers in line with our brand.
Packaging & Delivery
Packaging Details: Nude and securely lashed in ocean container.
Lead Time: 35-45 days after receiving 30% deposit.
Our Service
At present, it has established more than 700 domestic sales outlets, more than 1,000 maintenance service stations and more than 20 overseas after-sales service stations. And we also have regular overseas staff to assist our agents to establish and train their local after-sales service team and keep improving the service level.
