Introduction

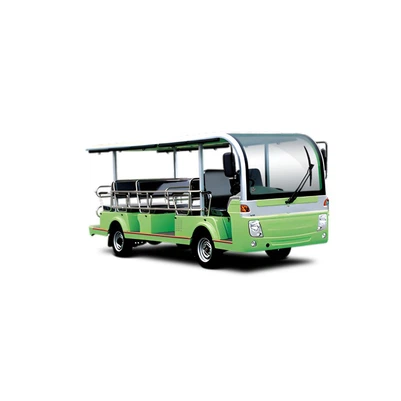

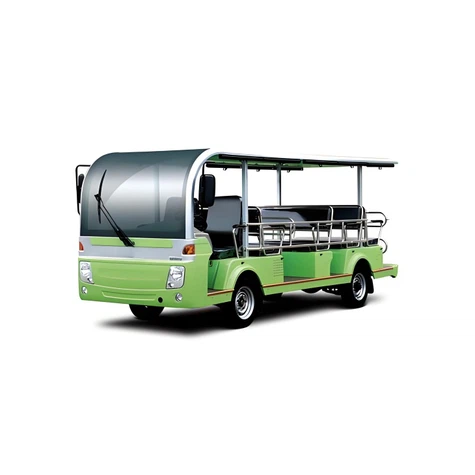

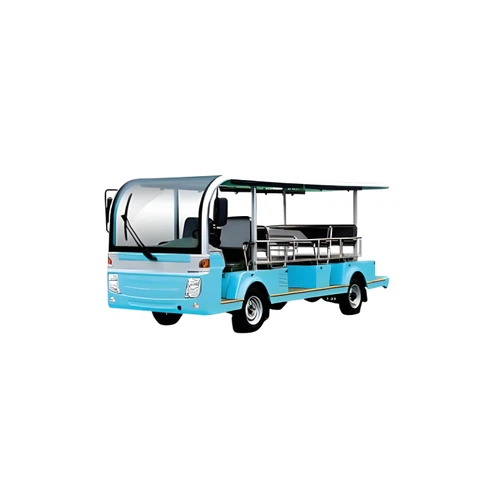

The 14 seats sightseeing vehicle is widely praised by customers in scenic areas. It offers multiple configurations, including 8–14 seats, and is suitable for both small parks and large resorts. With its panoramic view and comfortable ride experience, it has earned high praise from many clients and become a promotional highlight for scenic spots. Its stable chassis structure and automotive-grade manufacturing process provide efficient and safe transportation for both passengers and operators.
Parameter list
| Standard Configuration | |||
| Model | FS102 | ||
| Number of passengers | 14 | 11 | 8 |
| Length * Width * Height | 5000*1580*2000mm | 4500*1580*2000 | 4000*1580*2000 |
| Wheelbase | 2660mm | 2260mm | |
| Wheel base | 1340mm(front/rear) | ||
| Service weight | 1120(Kg) | 1050(Kg) | 950(Kg) |
| Minimum ground clearance | 130mm | ||
| Maximum speed | 30(Km/h) | 30(Km/h) | 30(Km/h) |
| Minimum turning radius | ≤6.5(m) | ≤6(m) | ≤5.5(m) |
| Maximum gradient (%) | 20 | 20 | 20 |
| Engine | 469 | 469 | 469 |
| Tank capacity (L) | 40 | 40 | 40 |
| Immobilize | Front disc and rear drum hydraulic brake | ||
| Suspension | Front McPherson, rear longitudinal spring | ||
| Rear axle | Full floating rear axle with central parking brake | ||
| Wheel | 165/70R13 steel rims | ||
| Seat | Leather/Transit | ||
| Electronic steering power | Standard configuration | ||
| Vacuum power | Standard configuration | ||
| Flooring | Aluminium alloy | ||
| Safety belt | Standard configuration | ||
| Traffic recorder | optional | ||
Core Features & Advantages
Multi scenario Adaptation
Flexible passenger capacity: Multiple seating options available (8/11/14 seats)
Stable and Reliable Power
Body length optimized through repeated design, making it easy to fit different routes
Safe and Efficient Operation
Full-floating rear axle improves load stability and extends service life
Economical and Practical Operation and Maintenance
Hydraulic braking system with vacuum assist
Small turning radius for navigating narrow scenic roads
These features help operators reduce fleet maintenance costs while ensuring passenger comfort and safety in various sightseeing scenarios.
Materials & Structure
The 14 seats sightseeing vehicle adopts a reinforced steel frame structure with aluminum alloy flooring, balancing strength and lightweight design. Key structural components are manufactured using automotive-grade stamping and welding processes, ensuring stable performance and durability even under high-frequency commercial use.
Exterior & Design
The open cabin design with transparent windows provides excellent ventilation and broad visibility, greatly enhancing passenger experience. The streamlined front end improves passage performance on narrow roads. The modular roof and body structure can be flexibly adjusted according to climate and usage scenarios.
OEM and Customization Capabilities
We can provide customized services according to your needs. Whether you have requirements for the color of the sightseeing vehicle or want to print your own license plate, we can make it happen. Just tell us your ideas, and we will satisfy you.
Production Process
The 14 seats sightseeing vehicle adopts complete automotive-grade production processes, including stamping, welding, painting and assembly. The core components such as the frame and body are independently developed, ensuring stable quality and reliable delivery. Each link is strictly controlled, and there are rigorous tests before delivery. We ensure that the best quality is delivered to our customers.
Packaging and Transportation
The 14 seats sightseeing vehicle is packaged professionally, suitable for container or bulk transportation, and meets export standards. It guarantees the safety of goods during transportation.
After-Sales Service
We can provide customers with remote technical guidance, and there is a manual included. The battery has a three-year warranty and can be replaced at any time.
Application Fields
Tourism Scenic Spots and Attractions
Resorts and Hotels
University Campuses and Industrial Zones
Large-Scale Parks and Exhibition Centers
Closed Communities
Are you looking for a reliable 14 passenger sightseeing vehicle suitable for your project? Contact us now. Our professional team will provide you with detailed specifications, customization solutions, and factory-direct pricing for the product.
FAQ
Q1: Is the 14 seat sightseeing vehicle for resort suitable for daily continuous operation?A: Yes. It is designed for high-frequency commercial use with durable chassis and braking systems.
Q2: Can the 14 seat sightseeing vehicle wholesale be customized for different climates?A: Yes. We can provide customized modifications for special components based on the climate characteristics of different countries. For example, the roof, seat materials, and accessories can all be adjusted according to the operating environment.
Q3: What is the typical delivery time for the vehicle?A: Delivery time depends on the configuration required by the customer and the order quantity. Please contact us for an accurate delivery schedule.
