The model Electric pickup Right hand is a China GB standard N1 catergory light duty commercial vehicle,this model already got the GB chinese CCC certification for N1 catergory.some key parts have got the EU ECE certification.The usage of this Pickup is for family using for shopping or travelling in urban city area.it has right hand and left hand two version.
The configration is as below:
|
Specification Sheet |
||
|
Basic Parameter |
Overall demension(LxWxH mm) |
5260 *1940 *1850 |
|
Wheelbase(mm) |
3300 |
|
|
Tread(Front/rear)(mm) |
1540/1560 |
|
|
Front / rear axle load |
1520/1705 |
|
|
Front suspension / rear suspension(mm) |
810/1150 |
|
|
Rated passenger |
5 |
|
|
Minimum turning radius ( m ) |
7.25 |
|
|
Approach angle / angle of departure(°) |
25.2/20 |
|
|
Max speed(km/h) |
90 |
|
|
Min.grondclearance |
220 |
|
|
Total quality(kg) |
3390 |
|
|
Kerb weight (kg) |
2100 |
|
|
Power Parameter |
Drive motor model |
TZ210XS-M050-09 |
|
Rated torque / speed / power of drive motor(N.m / r/Min /KW) |
50/6000/140 |
|
|
Peak torque / speed / power of drive motor(N.m / r/Min /KW) |
105/12000/300 |
|
|
Type of energy storage device |
Lithium iron phosphate battery |
|
|
Enterprise / model of energy storage device |
Avic lithium 386.4V 163Ah |
|
|
Total electricity |
62.98kWh |
|
|
Full charge endurance |
405km |
|
|
Intelligent battery thermal management |
Water-cooled battery |
|
|
Chassis |
Drive mode |
Rear drive |
|
Steering system |
Hydraulic power steering |
|
|
Front suspension / rear suspension |
Independent suspension/Leaf spring |
|
|
Braking system |
Double - loop hydraulic braking system |
|
|
Tyre size |
265/65R17 |
|
|
Standard specification |
||
|
Safety Parameter |
Main driver airbags |
● |
|
The co-pilot airbags |
● |
|
|
ABS |
● |
|
|
Tachograph |
○ |
|
|
Reverse radar |
● |
|
|
Reverse video |
● |
|
|
Ulcerate steering column |
● |
|
|
Three-point seat belt |
● |
|
|
Prompt of front seat belt |
● |
|
|
Inner central lock |
● |
|
|
Middle - door lock |
● |
|
|
Reminding system of unclosed door |
● |
|
|
High mount brake lamp |
● |
|
|
Defrosting function of rear windscreen |
- |
|
|
Comfort Parameter |
Liquid crystal electronic instrument |
● |
|
10"on-board information entertainment system screen |
● |
|
|
Electronic rotary shift |
● |
|
|
Anti-dazzling indoor mirror |
● |
|
|
A key to start |
● |
|
|
Remote central locking |
● |
|
|
Four-door power windows |
● |
|
|
Adjustable steering wheel |
● |
|
|
Removable case cover |
● |
|
|
On-board charger of 220 v |
● |
|
|
Overhead glasses case |
● |
|
|
Automatic air conditioner |
- |
|
|
Luxury side pedal |
● |
|
|
Leather seat |
○ |
|
|
Luxury grille |
● |
|
|
Main driving adjustable seat |
4-Direction Manual |
|
|
Co-pilot adjustable seat |
4-Direction Manual |
|
|
rudder direction |
LHD/RHD |
|
|
Charging time |
Quick charging for 2 hours/Slow charging for |
|
|
Standard Equipment, ○ Optional Equipment, - No Such Configuration |
||
Fashion style outlook design

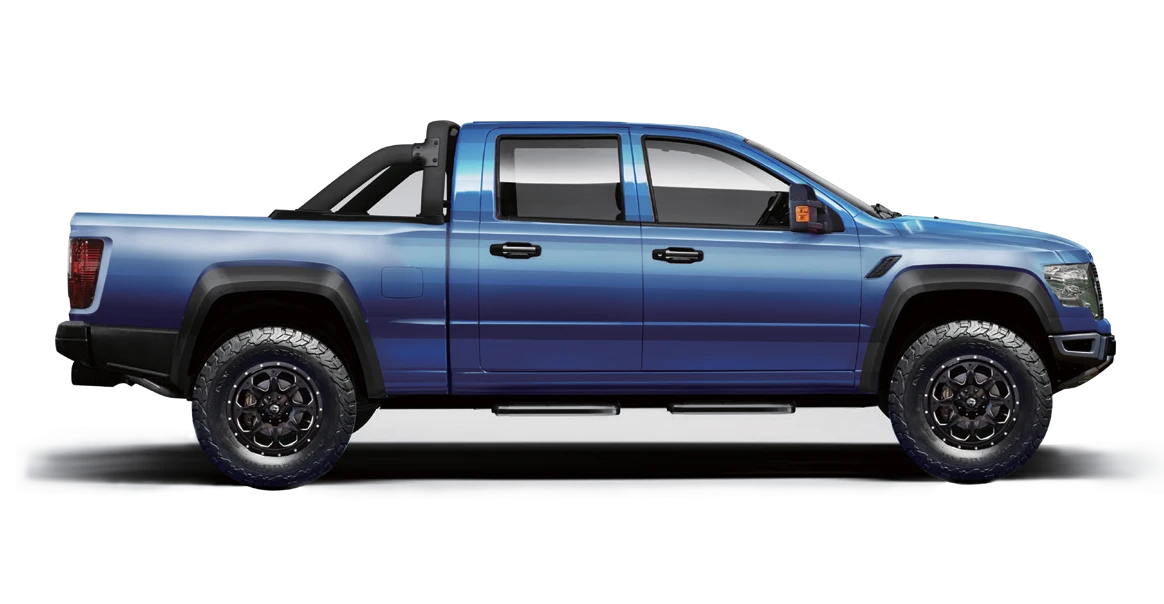

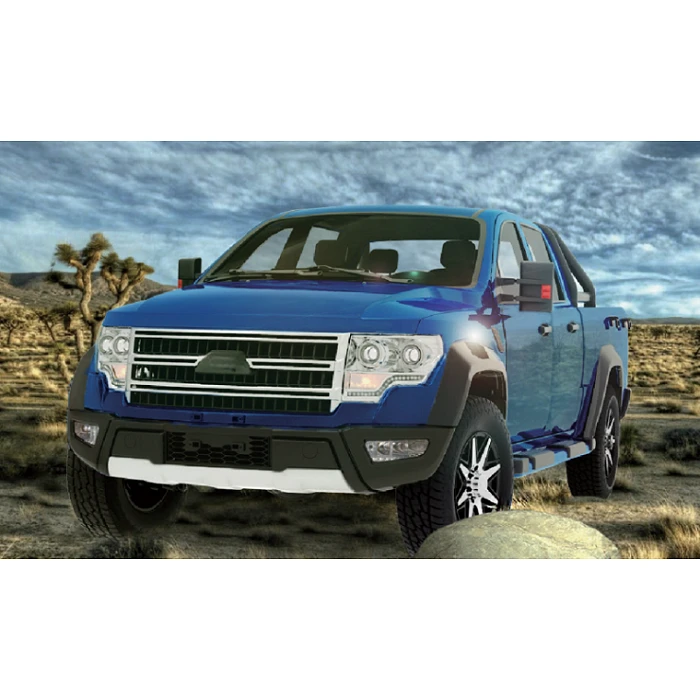

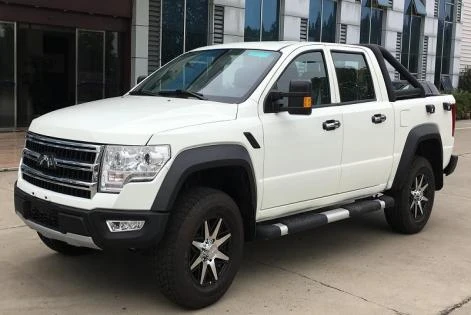

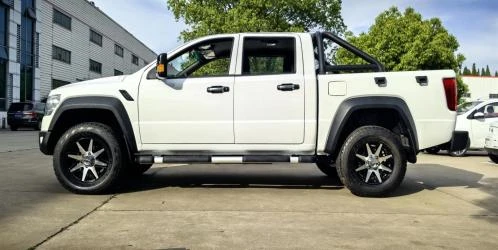

Our electric pickup right hand model has fasionable outlook design,it's dedicated to American pickup culture,rapture with hale cross-country element,domineering,angel eye headlights,LED angel eye headlight,raised matte fender flares,new side pedals and rearview mirror,cross-country container gantry and high-strength packing case,aluminium alloy wheel hub,with 265/65R17 off-road tires,tough temperament.
High performance and comfortable driving feeling
The electric pickup right hand model manufacture craft is high standard passenger car level,good adjusting of suspention,enough battery capacity could support the endurance mileage 405km,the voltage is 386V level,it support the fast charging system,The battery cooling system is liquid,it can help to control the battery temperature well.the motor is permanent magnet synchronous motor,maxmum power is 140kw,it can supply the enough power for the pickup.
Intelligent cabin system design

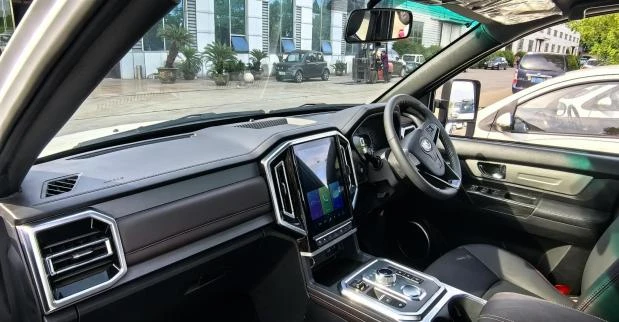

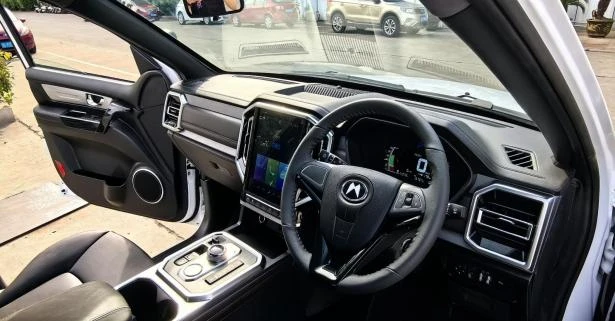

Inside,the electric pickup right hand is more dynamic,comfortable and stylish,with a new multi-fuctional media display,reversing video,reversing radar,infotainment and more.Muti-functional steering wheel,leather seats,atmosphere lights,automatic air conditoning,welcome pedals,make drving more free.
Safty items protection for passengers
Our electric pickup right hand has double air bag for driver and passenger,ABS+EBD is standard parameter,Reverse radar and vedio is supplied for driver,Ulcerate steering column is also standard opition items.High mount brake lamp is necessary parameter for this pickup.
