Advanced Power System for Long-Term Operation

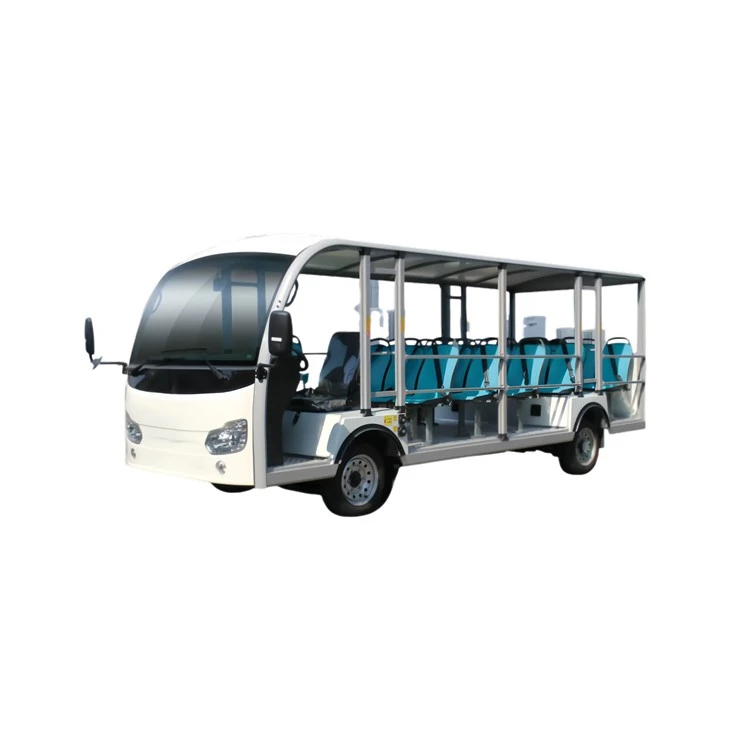

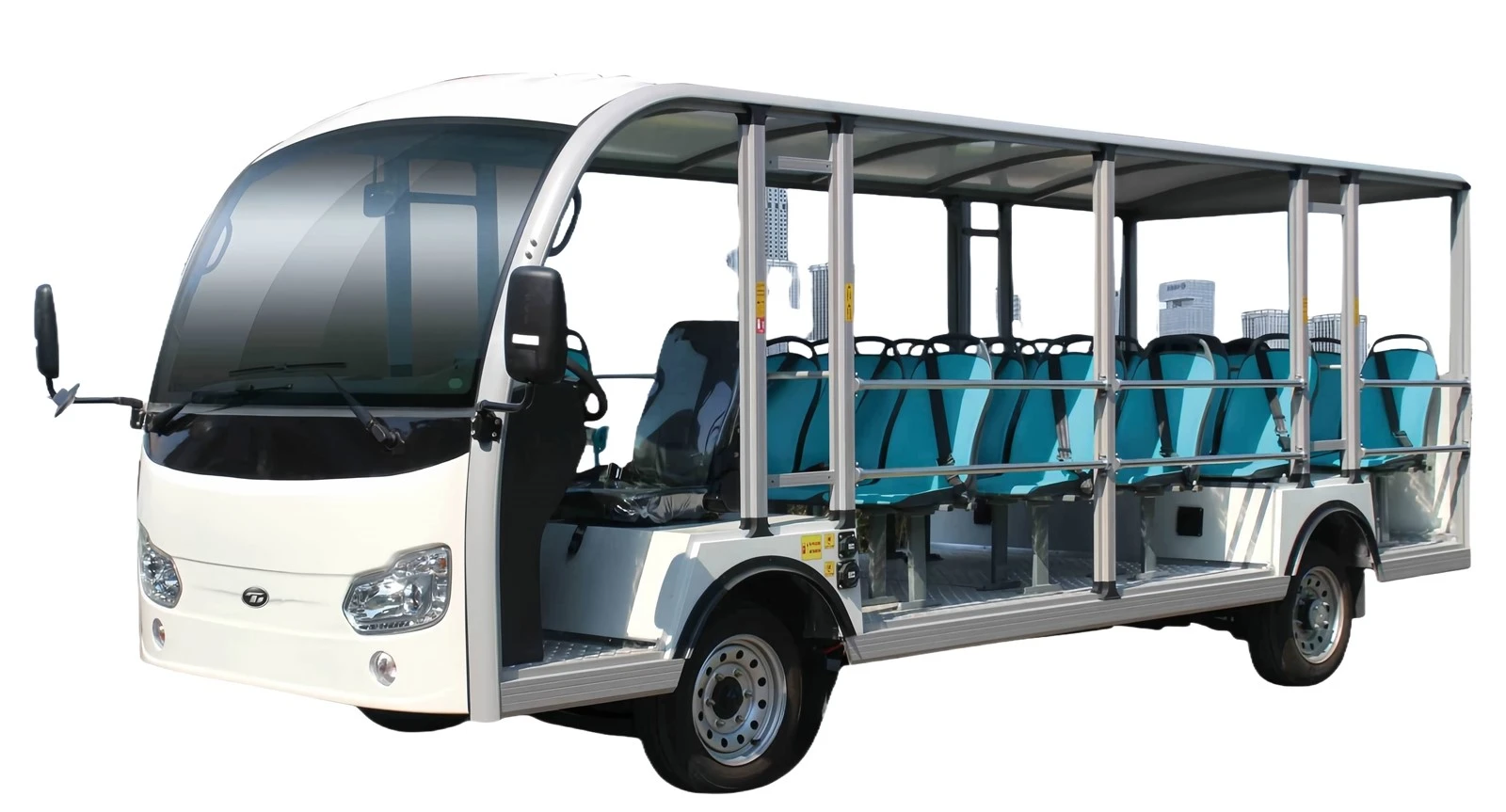

Equipped with a 35kW permanent magnet synchronous motor and a BYD 45kWh lithium iron phosphate battery, the Electric Tourist Shuttle Bus 14 Seater delivers excellent acceleration and power stability. The BMS remote battery management system guarantees real-time monitoring of temperature, voltage, and charge levels, extending battery life and reducing maintenance cost.
Its fast-charging system allows the battery to reach 80% capacity in just 40 minutes-ideal for commercial operators who need maximum uptime. This 14 seater electric tourist shuttle bus operates efficiently under various weather conditions thanks to its IP67-rated water-cooled motor and high-voltage system (350V).
parameters
| Model | ES201 |
| Product name | 14 seats high voltage lithium electric sightseeing car |
| Number of passengers (including driver) | 14 people |
| Length x width x height mm | 5180*1580*2000 |
| Wheelbase mm | 2660 |
| Wheel base (front/rear)mm | 1340/1320 |
| Minimum ground clearance mm | 130 |
| Maintenance weight Kg | 1400 |

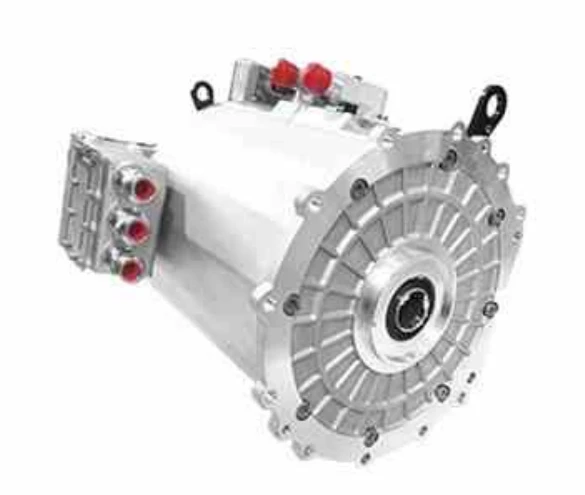

| Electric machine | Permanent magnet synchronous motor 35kw water-cooled motor, protection class IP67 |

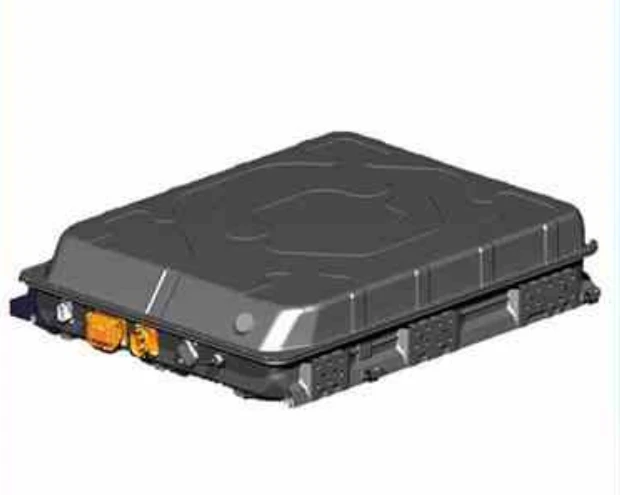

| battery | Byd 45kwh lithium iron phosphate battery |

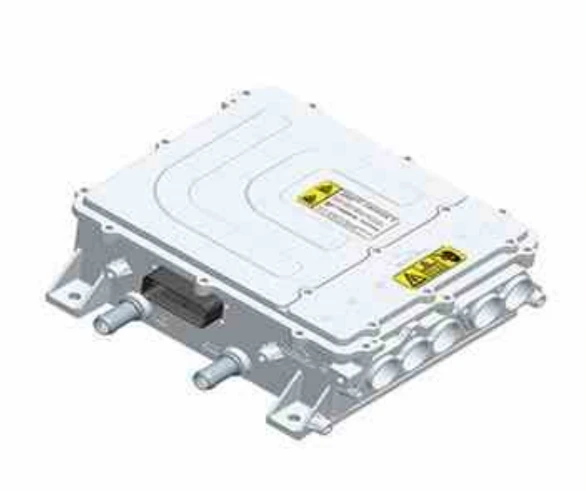

| controller | High efficiency, energy saving and high performance four-in-one vehicle controller |
| recharger | National standard fast and slow charge.,the battery supports 40 minutes of fast charge to more than 80% of the electricity |
| voltage | 350V |
| Electronic steering power | Standard configuration |
| Suspension system | Front McPherson independent suspension/rear longitudinal leal spring + hydraulic damping |
| Brake system | Dual circuit hydraulic brake, front disc and rear drum, with electronic vacuum power |
| Wheel assembly | 165/70R13LT8PR all-steel radial vacuum load bearing tires witn 5-hole steel rims |
| Lights and signals | Car combination headlights including LED water turn signal,position light with lens,taillights including turn signal,position light,reverse light |
| frame | 100*50 double crossbeam welded frame, with high strength and greater rigidity and safety; using automotive paint coating electrophoretic process, the anti-corrosion standard reaches the level of automobiles. |
| body | High strength steel skeleton + FRP covering SMC process FRP |
| celing | Six series aluminum profile framework+ transparent tempered glass |
| Flooring | Embossed aluminum flooring |
| seat | Driver independent seat,passenger nylon bus seat |
| Front windshield | Automobile laminated tempered glass |
| Protective measure | Left stainless steel guardrail, right reverse armrest, two-point safety belt |
| appearance | LCD combination meter (speed, current, power, vehicle fault, etc.) |
| battery management system | BMS Remote battery management system |
| range | ≥350km (under standard working conditions) |
Safety and Comfort for Every Passenger
To ensure passenger comfort, the vehicle is equipped with Front McPherson independent suspension and rear leaf spring with hydraulic damping. The dual-circuit hydraulic brake system, featuring electronic vacuum assist, provides strong braking performance and enhanced safety during operation.
The electric sightseeing shuttle 14 seater uses a high-strength steel frame and FRP body structure, offering superior stability and impact resistance. Every unit is fitted with LED combination headlights, turn signals, reverse lights, and position lamps, ensuring visibility and compliance with global safety standards.
Robust Structure and Automotive-Grade Materials
The frame adopts a 100×50 double crossbeam welded steel structure, treated with anti-corrosion electrophoretic coating. The six-series aluminum roof and tempered laminated glass ceiling not only improve passenger visibility but also strengthen the vehicle against extreme weather.
With embossed aluminum flooring, nylon passenger seats, and laminated tempered windshield, the 14 seats electric sightseeing vehicle ensures long-term durability and comfort even in high-frequency use.
Smart Design and Easy Maintenance
The vehicle is equipped with an LCD control dashboard displaying real-time data such as speed, voltage, and power level. The commercial electric sightseeing vehicle supports both slow and fast charging modes, and its modular design simplifies maintenance and reduces downtime.
Safety features include stainless steel guard rails, reverse alarm system, and two-point seat belts, providing maximum protection for both driver and passengers. The electric sightseeing shuttle 14 seater is designed for use in airports, resorts, theme parks, and tourist attractions where reliability and passenger comfort are top priorities.
Cost Efficiency for Wholesalers and Fleet Buyers
This 14 seater electric tourist shuttle bus delivers an impressive range of over 350 km per charge, minimizing energy cost by up to 60% compared to traditional fuel-powered vehicles. The maintenance-free motor and long-life battery significantly reduce total cost of ownership, making it an ideal option for fleet operators.
For wholesalers, we offer OEM customization, flexible MOQ starting from 1 unit, and global shipping support. The commercial electric sightseeing vehicle can be branded with your company logo, color, or local safety standards-ideal for bulk purchasing or regional dealership.
