Parameter list
|
Model |
FX200 Garden Utility Vehicle |
|
COLOR |
red/blue/yellow/white/green |
|
Final Drive |
Chain-drive |
|
Engine type |
4-stroke,Single-Cylinder, Air-cooled |
|
Fuel Delivery System |
Fuel Pump Carburetor |
|
Choke System |
Automatic |
|
Fuel capacity |
9.5L (2.1 Gallon) |
|
Driveline Type |
4X2 |
|
Transmission |
Constantly Variable Transmission |
|
Gear Selection |
Forward & Reverse Single Speed |
|
Forward Lights |
Headlights-High & Low Beam |
|
Rear Lights |
Brake Lights & Left/Right Signal lights |
|
Starting system |
Electric start |
|
Ignition system |
C.D.I |
|
Suspension Front |
Double A-arm optional |
|
Suspension Rear |
Dual Shock Swing arm |
|
Brakes Front |
Front Dual Hydraulic Disk |
|
Brakes Rear |
Rear Single Axle Hydraulic Disk |
|
Front Tread |
1020mm ( 40.2 in) |
|
Rear Tread |
965mm ( 38.0in) |
|
|
21x7-10 / 22x10-10 ALUMINUM RIM |
|
Loading information |
8 units/20″; 18units/40″; 26units/40HQ |
|
Manufacturers Warranty |
6 Months |
|
Top speed |
55km/h |
|
Dry weight |
290kg |
|
Gross weight |
360kgs |
|
Wheelbase |
1860mm (71.0in) |
|
Vehicle dimension(L×W×H) |
2450x1270x1670mm |
|
Packing size |
2290x1300x815mm (90.2x51.2x32.1in) |
Reliable Engine Performance
Powered by a 4 - stroke, single - cylinder, air - cooled engine with a power output of 7.6kw (10.5HP) at 7000r/min, it provides sufficient power for off - road exploration and light - duty operations. The OHV (Overhead Valve) design and a compression ratio of 9.0:1 contribute to its efficient performance.
Responsive Braking System
The front is equipped with dual hydraulic disk brakes, and the rear has a single axle hydraulic disk brake. This setup ensures reliable and responsive braking, enhancing safety whether on steep descents or during sudden stops on uneven terrains.
Adjustable Suspension Options

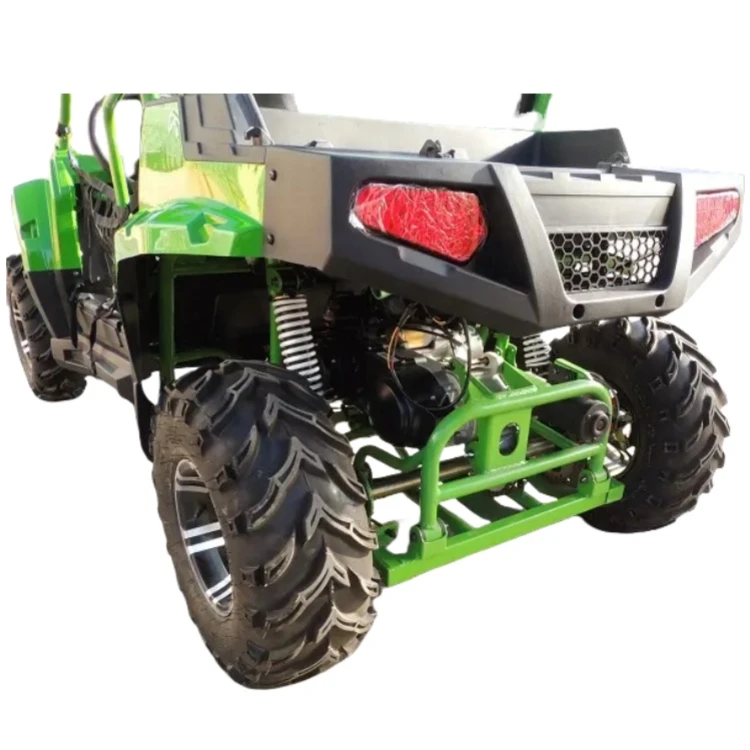

With the option of a double A - arm front suspension and a dual shock swing arm rear suspension, it can adapt to different terrains. The suspension system effectively absorbs shocks, providing a smoother ride over bumps and rough surfaces.
Convenient Features
It comes with an electric start system, making it easy to start the vehicle. The fuel delivery system is a fuel pump carburetor with an automatic choke system, and the 9.5L fuel capacity allows for a decent range of travel without frequent refueling. The electrical system includes high and low - beam headlights, brake lights, and left/right signal lights for enhanced visibility and safety.
Key Advantages：
Color Variety for Personalization：The wide range of color options (red, blue, yellow, white, green) allows users to personalize their UTV, making it not only a functional vehicle but also a statement of style in the off - road community.
Compact and Maneuverable Design：Its compact dimensions make it highly maneuverable, allowing it to navigate through narrow trails and tight spaces that larger UTVs might struggle with. This makes it ideal for more intimate off - road adventures or working in confined areas.
Chain - drive Final Drive：The chain - drive final drive offers a traditional and proven method of power transfer. It provides a direct connection between the engine and the wheels, which can be beneficial for those who prefer a more classic and straightforward drivetrain setup.
F&Q：
Q: What is the top speed of the FX200 Garden Utility Vehicle?
A: The top speed of the FX200 Garden Utility Vehicle is 55 km/h, which is suitable for off - road exploration while still providing a thrilling ride.
Q: How does the suspension system work?
A: The front can have an optional double A - arm suspension, and the rear has a dual shock swing arm suspension. These work together to absorb shocks from uneven terrain, providing a smoother ride.
Product knowledge：
The 4 - stroke, single - cylinder, air - cooled engine of the FX200 Garden Utility Vehicle operates by completing four strokes (intake, compression, power, exhaust) in each cylinder cycle. The air - cooling system uses fins on the engine to dissipate heat, making it suitable for various environmental conditions. The chain - drive final drive transfers power from the engine to the wheels through a chain, which requires periodic lubrication and tension adjustment for optimal performance. The hydraulic disk brakes work by using hydraulic pressure to squeeze brake pads against the rotors, creating friction to slow down or stop the vehicle. The adjustable suspension helps maintain tire contact with the ground, improving traction and stability.
