Parameter list
|
Model |

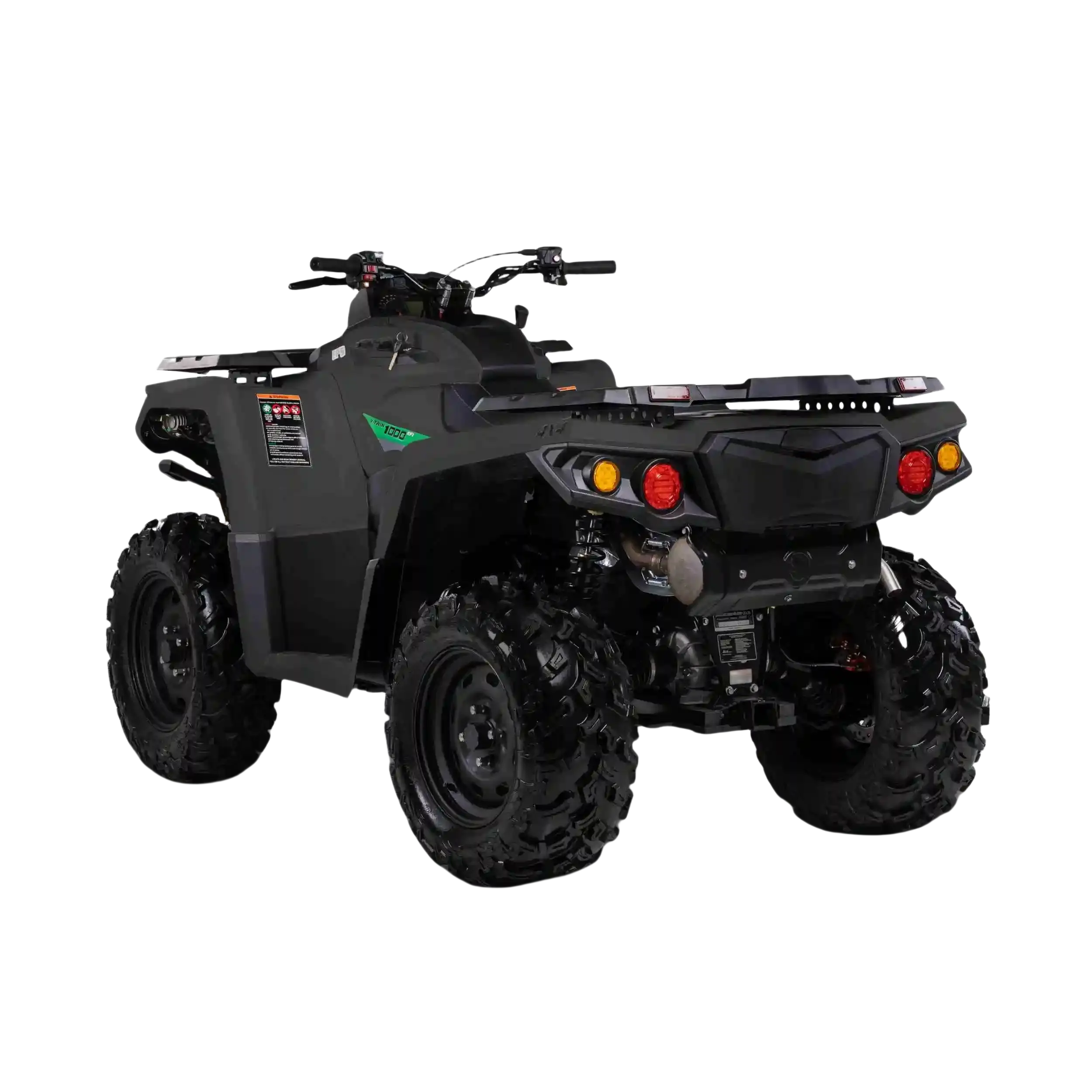

PATHCROSS 650/850/1000-L |
|
L×W×H(mm) |
2450×1246×1400 |
|
Wheelbase(mm) |
1508 |
|
Minimum ground clearance (mm) |
305 |
|
Max speed(km/h) |
115 |
| Fuel tank capacity(L) |
22 |
|
Engine Type |
V-twin, Four-stroke,Liquid-cooled |
|
Displacement(ml) |
649/800/976 |
|
Maximum power(kw) |
39.5/44/63.7 |
|
Maximum torque(N·m) |
62/73/101 |
|
Transmission way |
Shaft drive |
|
Drive train |
2WD-4WD |
|
Front brake |
Disc brake |
|
Front brake |
Disc brake |
|
Parking brake |
Hand brake |
|
Front Wheel /Ski Spec. |
26×9-R14 |
|
Rear Wheel /Track Spec. |
26×11-R14 |
|
Aluminum alloy rim |
850/1000 |
|
Steel rim |
650 |
|
Seats number |
2 seats |
|
Front |
Independent Dual A-Arm |
|
Rear |
Torsional Trailing Arm |
|
|
Independent(TTI) |
|
Shocks |
Adjustable Coilover shocks |
Multiple Engine Options
Available with engine displacements of 649ml, 800ml, or 976ml, it offers different power outputs to suit various riding needs. The maximum power ranges from 39.5kw to 63.7kw, and the maximum torque from 62N·m to 101N·m, providing flexibility in performance.
Efficient Shaft Drive Transmission
The shaft drive transmission way ensures smooth power transfer from the engine to the wheels. It reduces maintenance requirements compared to chain - driven systems and provides consistent performance over time.
Reliable Braking and Suspension
The front and rear disc brakes offer reliable stopping power, ensuring safety on all terrains. The independent dual A - arm front suspension and torsional trailing arm independent (TTI) rear suspension with adjustable coilover shocks provide a comfortable and stable ride, absorbing shocks from uneven surfaces.
Generous Fuel Tank Capacity
With a fuel tank capacity of 22L, it allows for longer rides without frequent refueling. This is especially beneficial for riders who plan to explore remote areas or go on extended off - road adventures.
Key Advantages：
Adaptable Engine Sizes：The availability of multiple engine sizes allows riders to choose the power level that best suits their riding style and intended use. Whether it's leisurely rides or more demanding tasks, there's an engine option for every need.
Long - lasting Shaft Drive：The shaft drive system is more durable and requires less maintenance compared to traditional chain - driven systems. This means less downtime for repairs and more time enjoying the ride.
Comfort - Oriented Design：The two - seat configuration, combined with the advanced suspension system, focuses on rider comfort. It's suitable for longer rides, whether it's a fun weekend outing or a work - related journey across rough terrains.
F&Q：
Q: What are the engine displacement options for the PATHCROSS 650/850/1000-L?
A: The engine displacements are 649ml, 800ml, and 976ml, offering different power outputs.
Q: How big is the fuel tank?
A: The fuel tank capacity is 22L, allowing for extended rides without frequent refueling.
Product knowledge：
The V - twin, four - stroke, liquid - cooled engines in the PATHCROSS 650/850/1000-L come in different displacements to offer varying power levels. The liquid - cooling system is crucial for maintaining engine efficiency and longevity. The shaft drive transmission transfers power smoothly and is less prone to wear and tear compared to chain - driven systems. The independent dual A - arm front suspension and TTI rear suspension work together to keep the vehicle stable and the ride comfortable. The disc brakes are designed to provide consistent and reliable braking performance in all conditions.
