The model Electric pickup truck is for family muti purpose light duty pickup,because of the mileage is 400-500km,it can provide the driver more distance travelling,more fuction feeling,it already got the China CCC certifiation for N1 category license.The key parts already got the ECE certification.
The specification of this model is as below:
|
Version |
63kWh |
86kWh |
|
|
Basic vehicle parameters |
|||
|
Overall body size |
5260x1900x1865 |
||
|
Rear cargo box size |
1525x1450x540 |
||
|
Wheel base |
3120 |
||
|
Number of passengers |
5 |
||
|
Minimum turning radius |
6.1 |
||
|
Synthetic performance |
|||
|
Battery pack type |
Lithium iron phosphate battery |
Ternary lithibattery |
|
|
CLTC Driving Mileage |
410* |
550* |
|
|
(kWh)Battery pack capacity |
63 |
86 |
|
|
Driving type |
Rear wheel drive |
||
|
Motor type |
High performance permanent magnet synchronous motor (PMSM) |
||
|
(kW)Peak motor power |
200 |
||
|
(N·m)Peak motor torque |
384 |
||
|
(s)0-100km/h acceleration time |
7.3 |
7.3 |
|
|
(km/h)Maximum speed |
185 |
||
|
(Cd)Vehicle wind resistance coefficient |
0.32 |
||
|
Suspension system |
Front McPherson independent suspension/rear multi-link independent suspension |
||
|
Braking system |
Four wheel disc brake |
||
|
Battery pack warranty |
8 years / 200,000km |
||
|
Vehicle warranty |
4 years / 100,000 km |
||
|

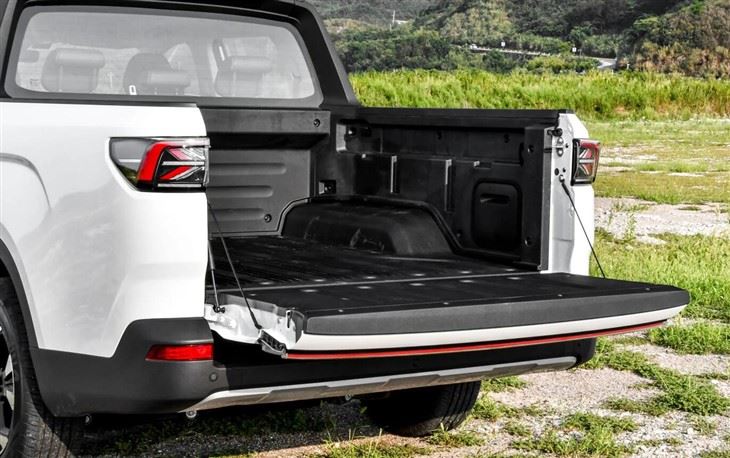

Storing space |
|||
|
1200L rear cargo box |
● |
● |
|
|
Pickup truck cargo treasure |
● |
● |
|
|
Detachable inner rope hook |
● |
● |
|
|
Flat cover |
○ |
○ |
|
|
Rear case moving slide rail |
○ |
○ |
|
|
Towing set |
○ |
● |
|
|
70L Front spare box |
● |
● |
|
|
48LRear seat hidden storage box |
● |
● |
|
|
Rear seat cushion 4/6 ratio fold |
● |
● |
|
|
Electrically unlocked rear door |
● |
● |
|
|
Efficient and powerful electric energy |
|||
|
Discharge patterns |
Static discharge/running discharge |
○ |
● |
|
Locking discharge |
○ |
● |
|
|
Discharge power |
Maximum 6kW |
Maximum 3.3kW |
● |
|
Discharge interface |
220V 10A/16A Interface |
○ |
● |
|
12V 10A Interface |
○ |
● |
|
|
Intelligent electric safety protection system |
○ |
● |
|
|
3 driving modes(Comfort/ECO/Sport) |
● |
● |
|
|
Braking energy recovery (3 levels) |
● |
● |
|
|
iBooster Electronic power assisted braking system |
- |
● |
|
EPB Electronic Parking Brake |
● |
● |
|
Auto-Hold Automatic Parking |
● |
● |
|
Full dimensional higher intelligence |
||
|

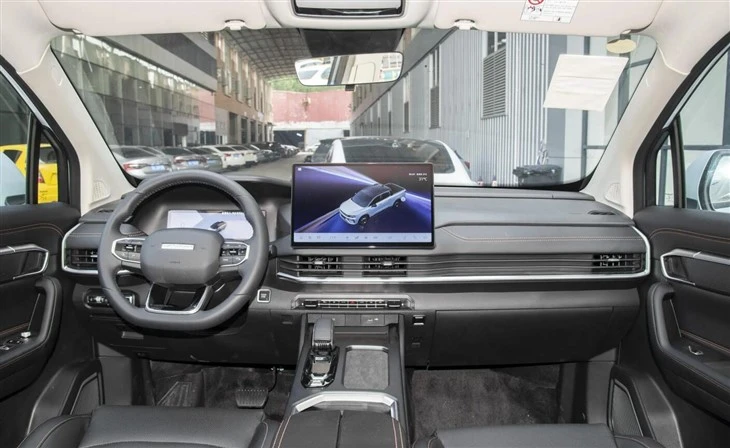

Intelligent interactive cockpit |
||
|
12.3 "combination meter (3.5" Color TFT screen) |
● |
- |
|
12.3-inch all-LCD instrument |
- |
● |
|
12.3-inch suspension center control panel |
● |
● |
|
Sound system |
6Speakers |
8Speakers |
|
Aesthetic design of appearance |
||
|
Phantom Front grille |
● |
● |
|
LED headlight |
● |
- |
|
ADB Matrix LED headlights |
- |
● |
|
AFS headlights follow the steering |
- |
● |
|
LED daily light |
● |
● |
|
Welcome the guests with lights |
- |
● |
|
Through-through LED recessed headlight |
- |
● |
|
Through-through LED recessed taillight |
● |
● |
|
styling combo taillights |
● |
● |
|
55-inch panoramic Sunroof |
- |
● |
|
Aluminum luggage rack |
● |
● |
|
(225/65 R17)Alloy Wheels |
● |
● |
|
Sporty two-color wheels |
- |
● |
|
Side step |
● |
● |
|
Comfort configuration |
||
|
Electric power steering system |
● |
● |
|
Intelligent key |
2 |
2 |
|
Bluetooth key |
- |
● |
|
Keyless entry system |
●Main driver side |
●Front |
|
Premium leather seat |
● |
● |
|
Main driver seat 6-way adjustment |
Electric |
Electric |
|
Passenger seat 4-way adjustment |
Manual |
Electric |
|
External rearview mirror electric adjustment |
● |
● |
|
External rearview mirror folds |
Manual |
Electric |
|
External rearview mirror/rear window panes heated |
- |
● |
|
Automatic wiper |
- |
● |
|
Leather steering wheel |
● |
● |
|
MFL Multifunction steering wheel |
● |
● |
|
Electromotive air conditioner |
● |
- |
|
Automatic bi-zone air conditioner |
- |
● |
|
CN95 air conditioning filter element |
● |
● |
|
PM2.5 air purification |
● |
● |
|
Cruise control system |
● |
● |
|
Four-door window one button lift with anti-clip |
- |
● |
|
Automobile Data Recorder |
○ |
●* |
|
Safety System |
||
|
Reverse sensor |
● |
● |
|
Reversing camera |
● |
● |
|
Transparent chassis (540° panoramic image) |
- |
- |
|
Electronic Stability Program |
● |
● |
|
Electric Assistant Braking |
● |
● |
|
Traction Control System |
● |
● |
|
Hill-start Assist Control |
● |
● |
|
Hill Descent Control |
● |
● |
|
Tire Pressure Monitoring System |
● |
● |
|
Airbag quantity |
4 |
6 |
|
Front seat belt not fastened reminder |
● |
● |
|
ISOFIX Child Safety Seat Interface |
● |
● |
|
Child safety door look |
● |
● |
Excellent Performance, Enjoy Driving
• Bosch iBooster brake
• Three gear regenerative braking energy recovery
• Three-gear adjustable steering feel
• Four-way adjustable steering column
• Better than NIO ET7 (6.2m) and Li one(6.25m) 6.9s 0-100 km acceleration
• 200kw/384nm high torque 3 in 1 E-drive
• active noise reduction technology
• Cd (wind resistance coefficient) 0.32 Three driving modes
• Comfort/ECO/Sport
• Three modes are adjustable.
Strong E-Energy & Super fast charging
• 100kWh high energy density battery pack
• Ultra-long range - 632km CLTC
• Super high energy density of 250 Wh/kg
• New generation permanent magnet synchronous motor
• Motor efficiency is 97.1%
• Charging at home: 11kW power AC, Support 380V charge; 7 hours charging from 20% to 100%
• Fast Charging: 10 minutes charging brings 100km range; 30 minutes charging from 30% to 80%
• IP68 level protection
• No-Spreading and no-fire technology
• Six major safety guarantees: multi-layer heat insulation, barrier-free heat release, real-time
prevention and control, automatic early warning, active cooling, power cut off in millisecond
Intelligent Ecosystem
• Galaxy OS passenger car class
• Full scene voice control
• Full-dimensional interaction, open ecosystem
• App remote control
• OTA upgradeDiverse Connection
• Unlimited high-speed connection flow
• Vehicle WIFI
• Wireless charging
• 9-inch full-color HUD/heads-up display
• 12.3-inch speedometer screen

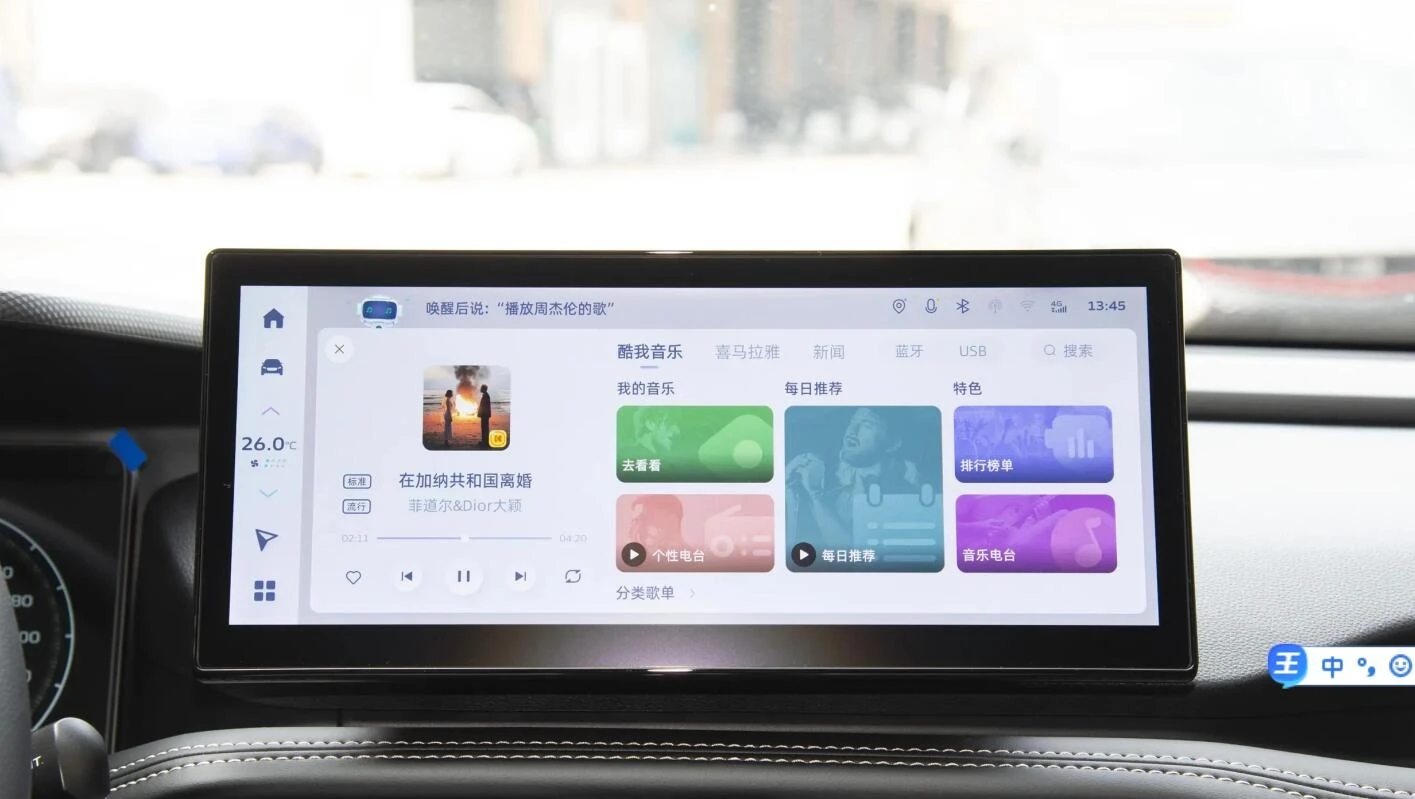

• 12.3-inch central control screen
Passenger safety protection,Pedestrian safety ,protection 5 stars+
• Integrated body structure design
• Torsional rigidity is 30300 N·m/°
• Roof can bear 3 times of vehicle weight.
• Front row 4 air bags + side curtain
• Safe anti-collision structure of battery
• High strength steel and ultra-high strength steel account for 66%
• Energy absorbing bumper
• Energy absorbing hood
• Large buffer space in front box
• Active collapse wiper
