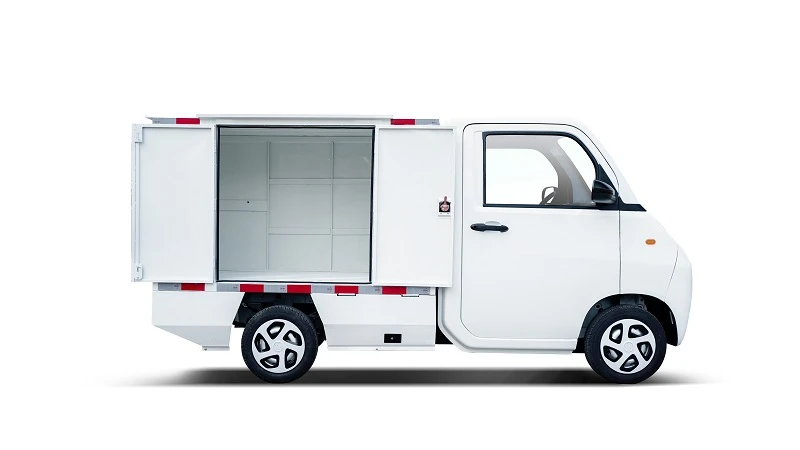

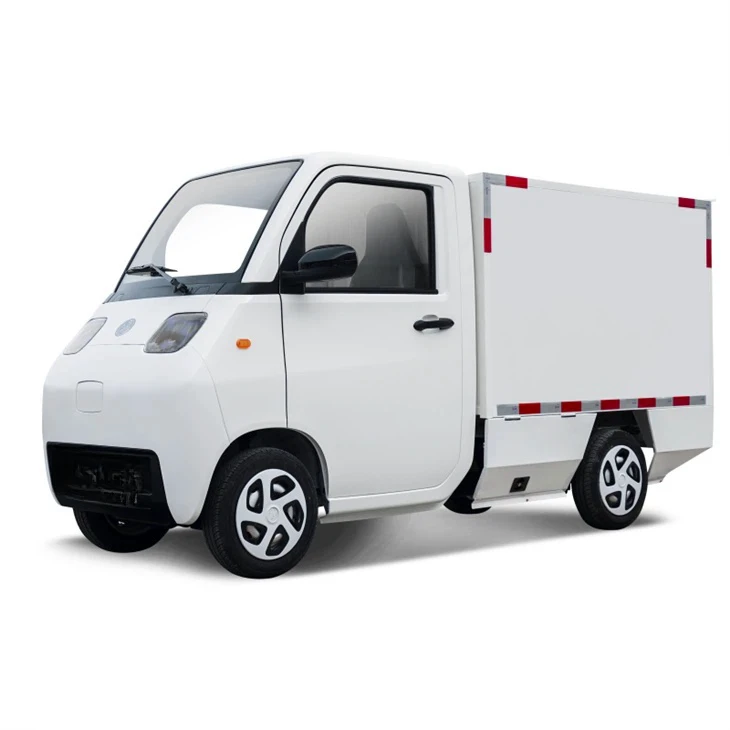

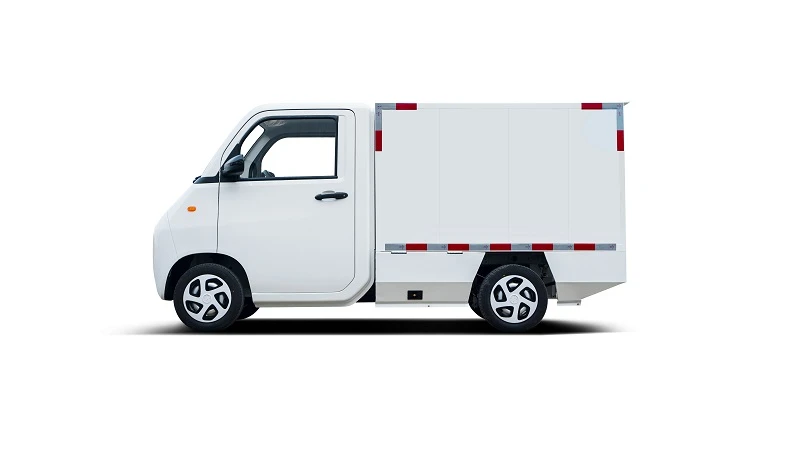

The electric mini truck 300kg is a special design model for last milage cargo transportation,the cabin seat is only one for driver,this model already got the EU EEC certification for L7E CU category,and it also got the Chinese goverment CCC certification for N1 license plate.
The configration of this model is as below:
|
Vehicle type |
Van-type truck |
|
Length × Width × Height (mm) |
3560x 1220x 1980 |
|
Wheel base (mm) |
2200 |
|
FRONT/Rear Wheel distance(mm) |
FRONT 920/ REAR 1020 |
|
Cargo payload (kg) |
340 |
|
APPROACH/DEPARTURE ANGLE |
34/ 20 |
|
GVW(kg) |
1076 |
|
Minimum turning radius (m) |
4.5 |
|
Minimum ground clearance (mm) |
140 |
|
Brake type |
Front disc rear hub |
|
Tire specifications |
145/70R12 |
|
Motor type |
Permanent Magnet synchronous motor |
|
Cooling method |
Air-cooled |
|
Maximum power (Kw) |
15 |
|
Maximum torque (Nm) |
60 |
|
Maximum speed (km/h) |
81 |
|
Maximum grade (%) |
25 |
|
Full Range (km) |
100 |
|
Battery type |
LFP |
|
Rated capacity (Ah) |
87(1C) |
|
Nominal voltage (V) |
96 |
|
Battery pack weight (kg) |
74±3 |
|
Battery capacity (KwH) |
8.352 |
|
Battery pack energy density (Wh/kg) |
112 |
|
On-board charger (Kw)( |
3.3 |
|
Charging mode |
AC slow charge |
|
Charging distance in 1 hour (km) |
35 |
|
Charging time 20-80%(h) |
1.5 |
|
Charging time0-100%(h)( |
3 |
|
Body structure |
Load-bearing bod |
|
Front suspension type |
McPherson independent suspension |
|
Rear suspension type |
Leaf Spring Integral Bridge is not independent suspension |
|
Drive mode |
Rear drive |
|
Transmission |
Fixed ratio 10：1 |
|
Wipers |
Intermittent front wiper |
|

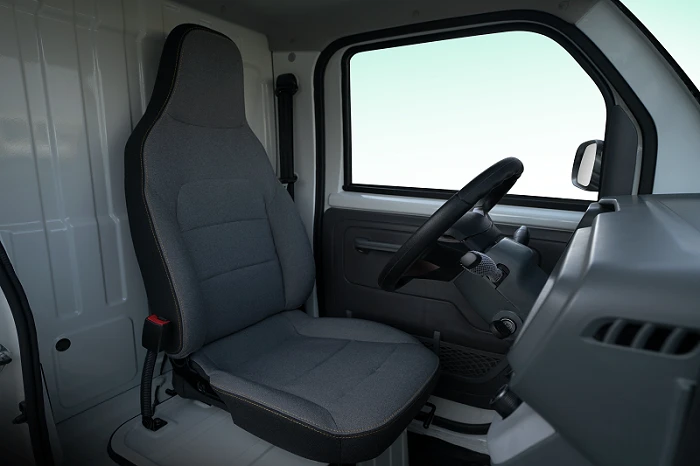

Seat cover |
Knitted fabric |
|
Sun visor |
Flip |
|
Anti-lock braking system |
ABS |
|
Power steering type |
Optional electric |
|
Type of seat belt |
Three- point |
|
Number of USB ports |
2 |
|
Heating and cooling air conditioner |
Optional |
|

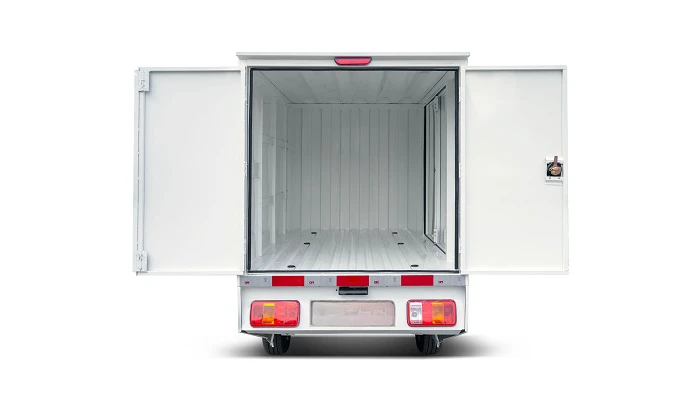

Cargo length (mm) |
outside：1880 Inside：1800 |
|
Cargo width (mm) |
outside：1220 Inside：1140 |
|
Cargo height (mm) |
outside：1400 Inside：1300 |
|
Cargo volume (m³) |
2.7 |
|
Brake Energy Recovery System |
Brake Energy Recovery |
|
pedestrian Reminders |
Low-speed pedestrian reminder function |
|
The main driver is not wearing a seat belt sound and light alarm |
Audible alarm |
Four big different usage scenario segment
electric mini truck 300 kg has for major usage scenario.
Packages distribution:Express delivery,Community group purchasing and delivery,Fast delivery.
Stores and supermarkets delivery: Individual businesses, Supermarkets, Community stores.
Service tools:Transfer vehicles, Housekeeping and cleaning service vehicles,Maintenance service tool cart (such as door locks, tires, etc.)

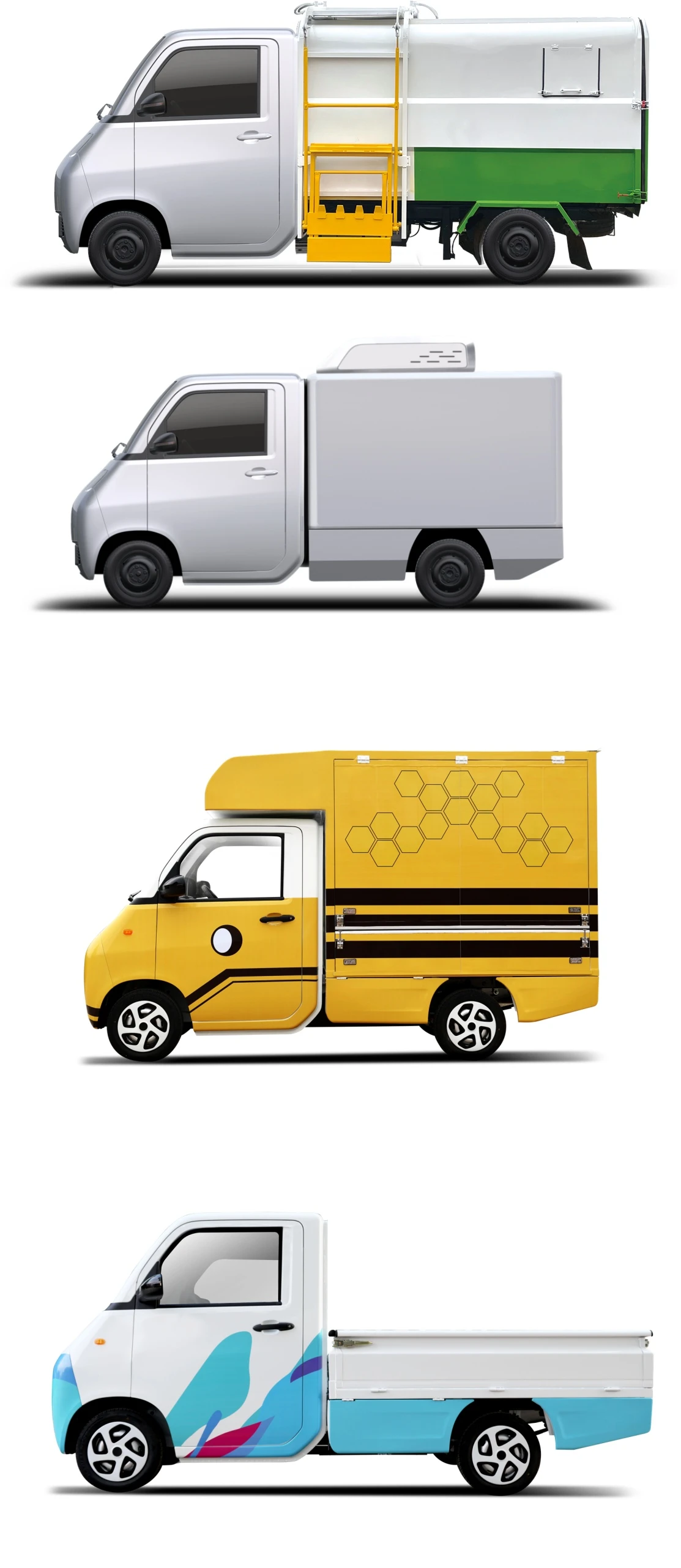

Modified models: Cold chain transportation,Municipal administration, etc. (Small flushing truck, barreled garbage truck, micro firefighting, emergency rescue) ,mobile shopping truck,Agricultural intelligence and automation,Both commercial and passenger use (rural and urban transportation)
Comfortable and durable
electric mini truck 300 kg with Fine workmanship manufacturing, resistant and durable,high reliability;
Optional heating and cooling AC;
Optional vacuum power, braking is safer and more comfortable.
Safe and secure
electric mini truck 300 kg with Full sheet metal stamping of the whole body, safety escort;
37 items vehicle virtual verification, to ensure the safety of the body;
Standard ABS, braking anti-roll, higher safety.
Efficient traffic
The maximum speed can reach 80 km/h, run faster, delivery fast and earn more;
1.08m body width, going through the streets and alleys flexibility, saving time and efficiency.
With a maximum single range of 115km, running farther, without mileage anxiety, and make transportation more efficient.
