Product Definition

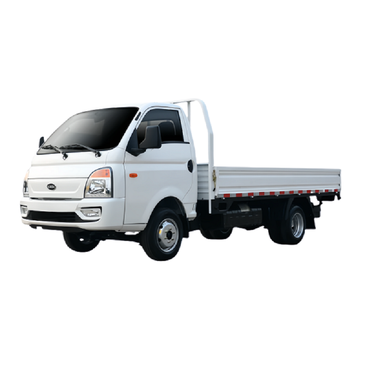

The 4 Ton Diesel Flatbed Truck is a light duty commercial truck powered by a fuel-efficient diesel engine, engineered for medium-load logistics, building material delivery, municipal services, and general cargo transportation. It combines compact dimensions with a high payload rating, making it especially suitable for urban and short-to-medium distance commercial operations where reliability and cost control matter most.
High Performance Diesel Powertrain for Commercial Reliability
At the heart of this 4 Ton Diesel Flatbed Truck is the proven JE493ZLQ3A ISUZU diesel engine, delivering 75 kW of maximum power and 240 N·m of torque at low RPM. This torque-focused output ensures strong pulling performance under load, especially during frequent stop-and-go urban driving.
With a 2.771L displacement and a 5 speed manual transmission, the truck offers smooth gear transitions and excellent fuel efficiency. The FR 4×2 drive layout combined with a 4.875 final ratio optimizes traction and drivetrain durability, helping operators reduce maintenance costs over long-term use.
Why it matters
Diesel engines are preferred in commercial trucks due to higher torque output and longer service life. This configuration enables stable operation even at full payload, verified by its 4040kg GVW rating.
2000kg Payload with Optimized Flatbed Cargo Space
Designed for real-world logistics demands, this small flatbed truck for sale features a cargo box with 3575 × 1750 × 360 mm internal dimensions. The flatbed structure allows easy loading of pallets, construction materials, agricultural goods, and industrial equipment.
With a rated payload capacity of 2000kg, this light truck bridges the gap between small utility vehicles and medium duty trucks, making it a flexible solution for distributors, contractors, and fleet operators.
The 600R15 heavy-duty tires and full-size spare tire further enhance load stability and on-road safety during daily operations.
Compact Size, Easy Maneuverability for Urban Transport
Despite its strong load capability, the 4 Ton Diesel Flatbed Truck for urban delivery maintains excellent maneuverability. A 6.5-meter minimum turning radius allows smooth navigation through narrow streets, warehouses, and loading zones.
The 2850mm wheelbase and 150mm minimum ground clearance provide a balanced ride height for both paved city roads and light industrial zones. This makes it especially competitive among light commercial trucks used in congested urban environments.
Durable Chassis, Suspension & Braking System
This 4 Ton Diesel Flatbed Truck uses a leaf spring dependent suspension system on both front and rear axles, paired with dual-acting tube dampers. This setup is widely used in commercial vehicles due to its durability, load tolerance, and ease of maintenance.
The air power double-circuit drum brake system ensures reliable braking performance even under full load, enhancing operational safety during long working hours.
Driver-Oriented Interior with Practical Comfort
The cabin is designed for functionality and comfort. Features such as hydraulic power steering, manual air conditioning, PVC flooring, and ergonomically positioned controls reduce driver fatigue during extended shifts.
The 2-seat layout, adjustable driver seat, and clear instrument layout support long-distance and high-frequency daily use-essential for logistics and municipal applications.
Safety-Focused Body Structure
Safety is reinforced through an all-metal enclosed unbearing body, high-strength anti-collision door beams, and an energy-absorbing collapsible steering column. Front and rear fog lamps improve visibility in low-light conditions, while three-point seatbelts with reminders help meet basic safety standards for commercial operation.
Parameter list
| Models |
Light duty flatbed truck |
| Length*Width*Hight mm | 5585*1840*2070 |
| Cargo box inside dimension (mm) | 3575*1750*360 |
| Wheelbase mm | 2850 |
| Wheeltrack(Front/Rear) mm | 1495 / 1375 |
| Minimum ground clearance mm | 150 |
| Minimum turning radius m | 6.5 |
| Curb weight kg | 2040 |
| Tyre specification | 600R15 |
| Spare tire | Full size spare tire |
| Seats number | 2 |
| GVW (kg) | 4040 |
| Payload (kg) | 2000 |
| Powertrain | |
| Engine model | JE493ZLQ3A(ISUZU) |
| Engine displacement cc | 2771 |
| Maximum power kW/rpm | 75/3600 |
| Maximum torque N.m/rpm | 240/2000 |
| Maximum speed km/h | 100 |
| Transmission type | 5MT |
| Final ratio | 4.875 |
| Fuel tank capacity L | 80 |
| Emission level | Euro 3 |
| Braking ,Suspension,Driving Type | |
| Braking system | drum, air power double circuit brake system |
| Suspension system(Front/Rear) | Front suspension:leaf spring dependent suspension, dual-acting tube damper; Rear suspension: leaf spring dependent suspension, dual-acting tube damper |
| Drive type | FR 4*2 |
| Interior | |
| Inner rear-view mirror | ● |
| simple interior | ● |
| Luxury Interior | - |
| PVC carpet | ● |
| Cargo box aluminum plate | |
| Driver visor | ● |
| Passanger visor | ● |
| Inside safe handle | ● |
| Ashtray | ● |
| Safety | |
| Car body color front bumper | ● |
| All metal enclosed unbearing body | ● |
| High strength two door anti-collision rod | ● |
| Adjustable collapsible energy absorption steering column | ● |
| Steering column lock | ● |
| Front fog lamp | ● |
| Rear fog lamp | ● |
| Front three point seatbelt with reminder | ● |
| Middle two 3-point and one 2-point seat belts(7 seats) | - |
| ABS | - |
| ESC(including ABS+EBD) | - |
| Seats | |
| Fabric seats(Black/gray) | ● |
| Artificial leather seats(Black/gray) | - |
| 2-way manually adjustable driver's seat | ● |
| 2-way manually adjustable Co-driver's seat | - |
| Angle adjustable, collapsible, rolling-over, removable second row 2+1 seats(11 seats) | - |
| Second row removable headrests(5seats) | - |
| Front seat with removable headrests | ● |
| Operating devices | |
| HPS | ● |
| Electric Power Steering | - |
| Manual lock | - |
| Central door lock | ● |
| Heater | ● |
| Manual warm-cold A/C( front) | ● |
| Front manual door window(without anti-pinch) | ● |
| Manual adjusting outside rearview mirror | ● |
| Power adjustable front headlight | - |
| Gating control lamp switch | ● |
| Front room lamp | ● |
| Single tone horn | ● |
| Double tone horn | - |
| Cruice Control System | - |
| Hand-operated outside rear-view mirror | ● |
| Audio | |
| Electrically control radio | - |
| Manually control radio | ● |
| USB interface | - |
| 2 speakers | ● |
| MP5 with reversing camera | ● |
Why Choose This 4 Ton Diesel Flatbed Truck?
Balanced payload And size for urban and regional transport
Proven ISUZU diesel engine ensures durability and low running costs
Flatbed cargo design supports multi-industry applications
Manufactured by an experienced commercial vehicle manufacturer with full automotive-grade production processes
Customizable configurations available for different markets and operational needs
Get a Quotation Today
Looking for a reliable 4 Ton Diesel Flatbed Truck for Sale with factory-direct pricing and customization options?
👉 Contact us now to get detailed specifications, lead time, and a competitive export quotation tailored to your market.
FAQ
Q1: Is this 4 Ton Diesel Flatbed Truck for cargo transportation suitable for city logistics?
Yes. Its compact dimensions, 6.5m turning radius, and 2000kg payload make it ideal for urban distribution and short-haul logistics.
Q2: What type of cargo is this flatbed truck suitable for?
It is suitable for construction materials, agricultural products, industrial goods, pallets, and general cargo transport.
Q3: Can this truck be customized for different markets?
Yes. Engine configuration, cargo box type, and functional options can be customized according to local regulations and usage requirements.
Q4: What emission standard does the truck meet?
This model complies with Euro 3 emission standards, suitable for many emerging and developing markets.
