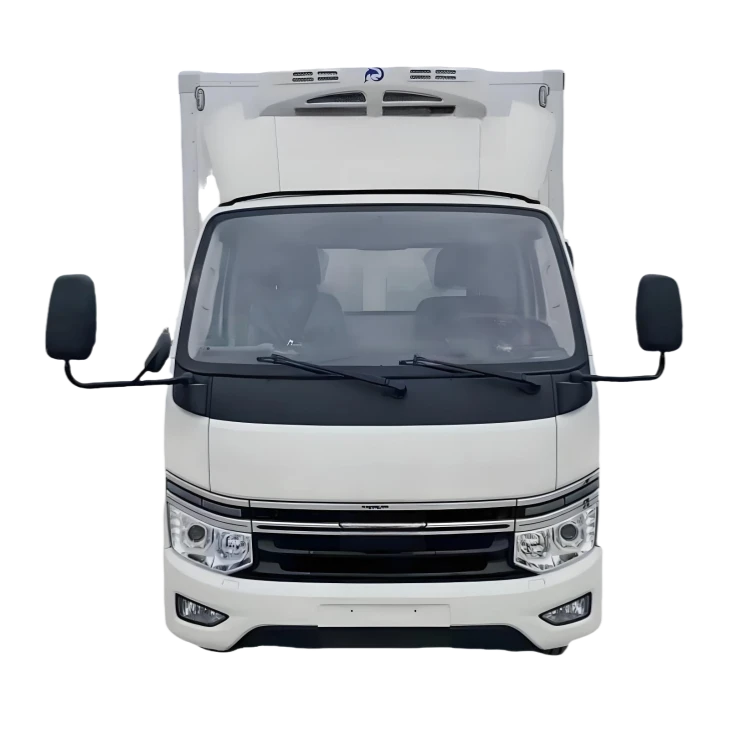

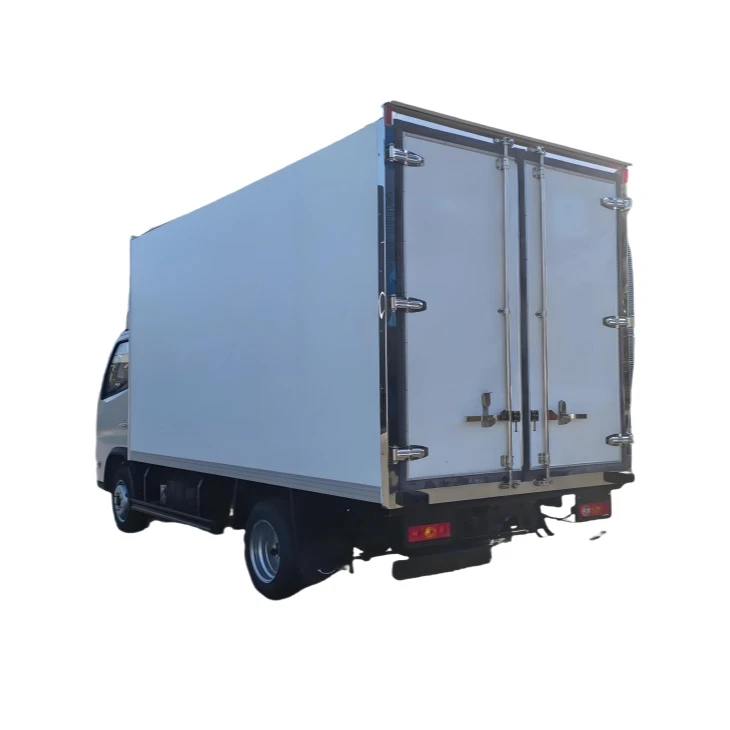

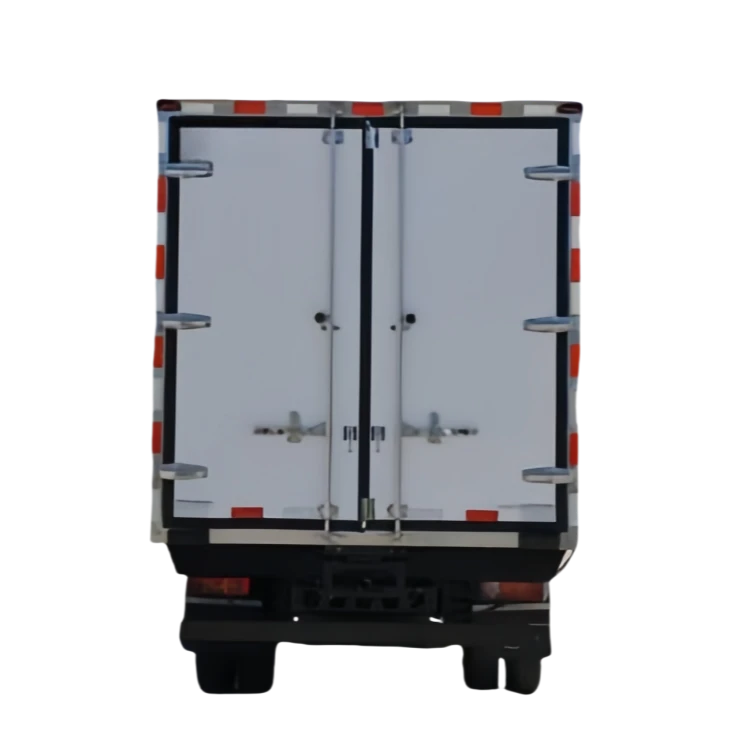

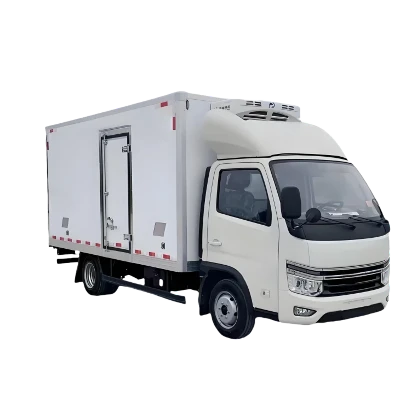

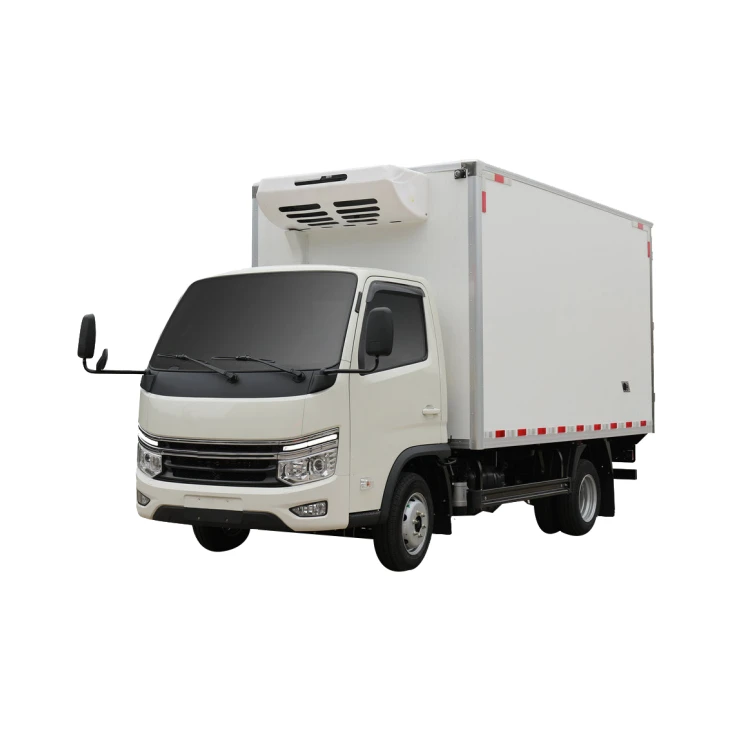

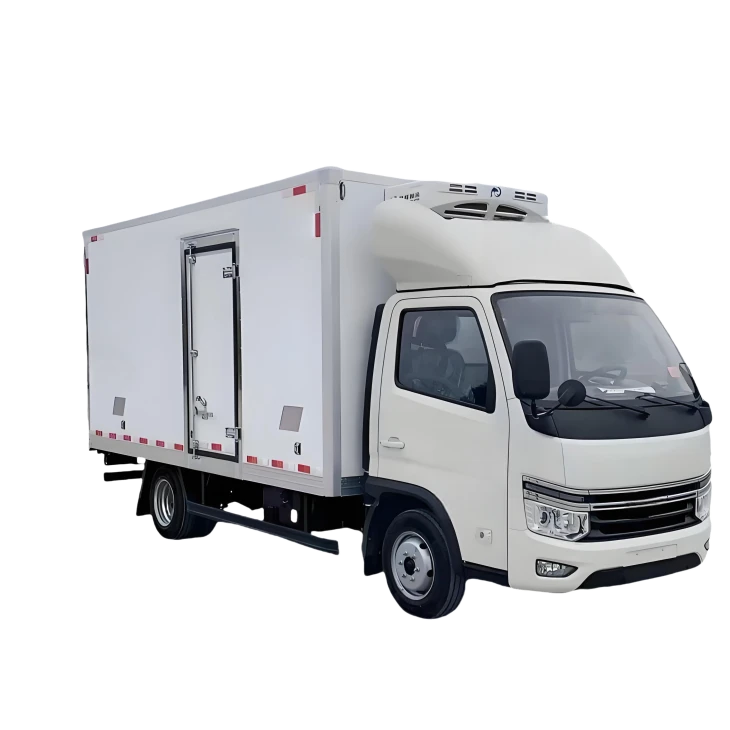

Temperature Controlled Cargo Truck

Parameter list

Refrigerated Truck Operation Specifications
1. Daily Pre-Departure Inspections
Before starting the Temperature Controlled Cargo Truckeach day, a comprehensive vehicle condition verification is required. First, inspect the exterior for any collision damage or risk of component detachment; use professional equipment to measure tire pressure, compare it with standard values to determine if inflation or tire replacement is needed, and observe whether tire tread wear is uniform. Secondly, focus on checking the tightness of the refrigerated compartment's door seal-detect gaps via the light transmission method to ensure no cold air leakage; simultaneously test the startup status of the refrigeration unit, monitor operating noise for normality, and confirm that sensor feedback data falls within standard ranges.

2. Pre-Transport Temperature Setting
Based on cargo characteristics (e.g., 2–8°C for pharmaceutical cold chains, below 0°C for fresh food), activate the refrigeration unit 2 hours before loading to pre-cool the compartment. Set the target temperature via the vehicle's temperature control system and continuously monitor the internal temperature curve during pre-cooling until reaching the cargo storage critical value (with an error of ±0.5°C). For temperature-sensitive biological products, it is recommended to turn on the forced convection fan during pre-cooling to ensure uniform temperature distribution inside the compartment.

3. Cargo Handling Standards

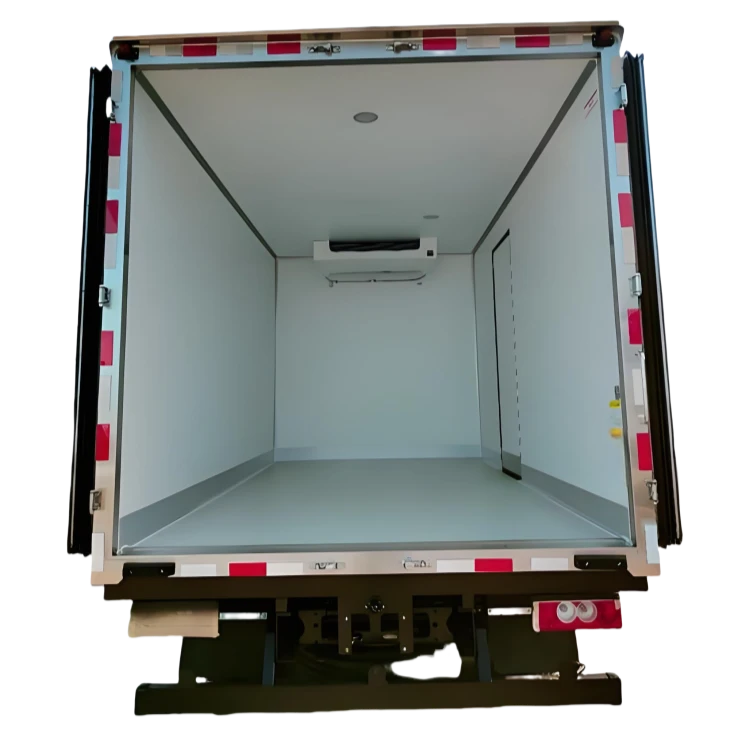

The "gentle touch and slow movement" principle must be followed during loading and unloading: use hydraulic pallet trucks to handle goods and avoid scratching the compartment floor by dragging; for fragile items or precision instruments, fix them with suspended shelves to reduce vibration and impact. When stacking goods, leave a cold air flow channel of at least 10 cm on both sides of the compartment, maintain a 20 cm distance from the top of the goods to the air outlet, and use special temperature-measuring labels to real-time monitor hotspots, eliminating local temperature rises caused by over-dense stacking.

4. Periodic Maintenance Plan
According to the vehicle maintenance manual, perform Level 1 maintenance every 5,000 kilometers: deeply clean dust from the condenser surface of the refrigeration unit and blow cooling fins with compressed air; check the bolt torque of the chassis suspension system and lubricate rotating components such as drive shafts; test the thickness degradation of the compartment insulation layer and detect cold bridge hazards via infrared thermal imaging. Perform Level 2 maintenance every 20,000 kilometers, including replacing refrigeration oil, calibrating temperature sensor accuracy, and simulating unit operation under extreme conditions.

 Differentiated Competitiveness
 1. Industry-Tailored Solutions
Modular configurations are provided to meet the needs of different industries:
(1) Pharmaceutical Cold Chain: Standard features include a dual-refrigeration unit redundancy system, temperature recorder (with 3-year data traceability), and UV sterilization function, complying with GSP certification requirements;
(2) fresh Logistics: Integrated with rapid pre-cooling technology and humidity control modules to extend fresh produce shelf life.
2. Convenient After-Sales Service
The vehicle features high universality in parts replacement and maintenance, ensuring easy repair and upkeep.

 F&Q
Q1: Will Refrigeration Efficiency Decline in High-Temperature Environments?
The condensing unit of this temperature-stable Temperature Controlled Cargo Truckis designed for high-temperature resistance. When transporting frozen goods in a 38°C environment, temperature fluctuations inside the compartment can be controlled within the range of **-18°C ±1.5°C**.

Q2: How to Respond to Refrigeration System Failures?
The compartment uses 50mm-thick polyurethane foam (thermal conductivity ≤0.02W/(m·K)) to slow down temperature rise.

Q3: Tire Service Life and Maintenance Tips
The tire design life is 80,000 kilometers (under standard conditions), with actual life significantly affected by load and road conditions. Recommendations: ① Use a high-precision tire pressure gauge for monthly checks (error ±0.1Bar);

② Rotate tires every 10,000 kilometers;

③ Avoid overloading.
