Parameter list

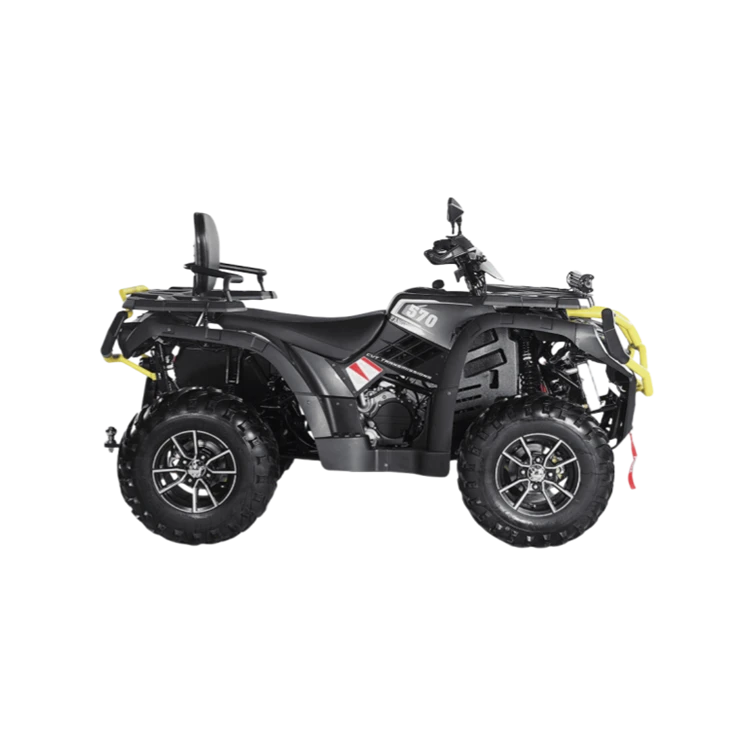

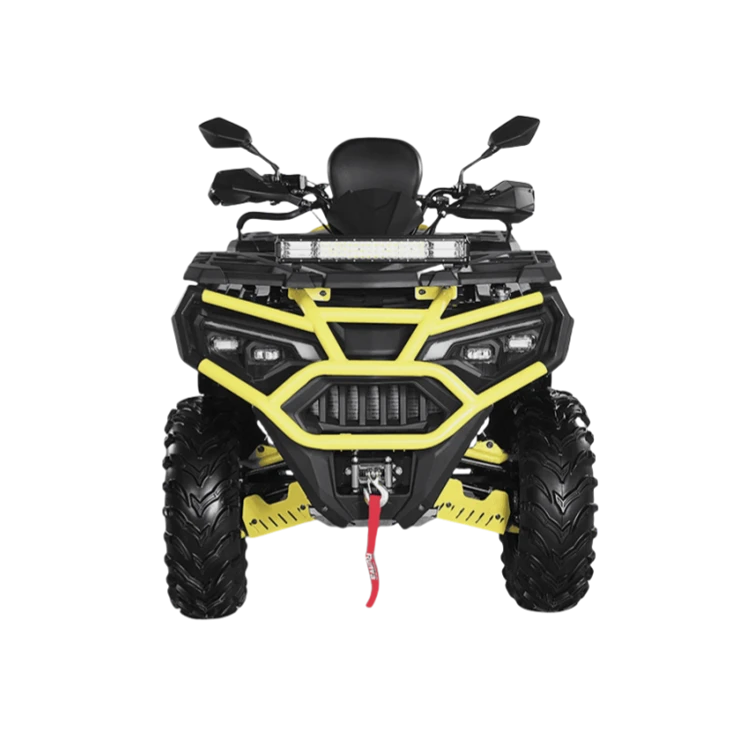

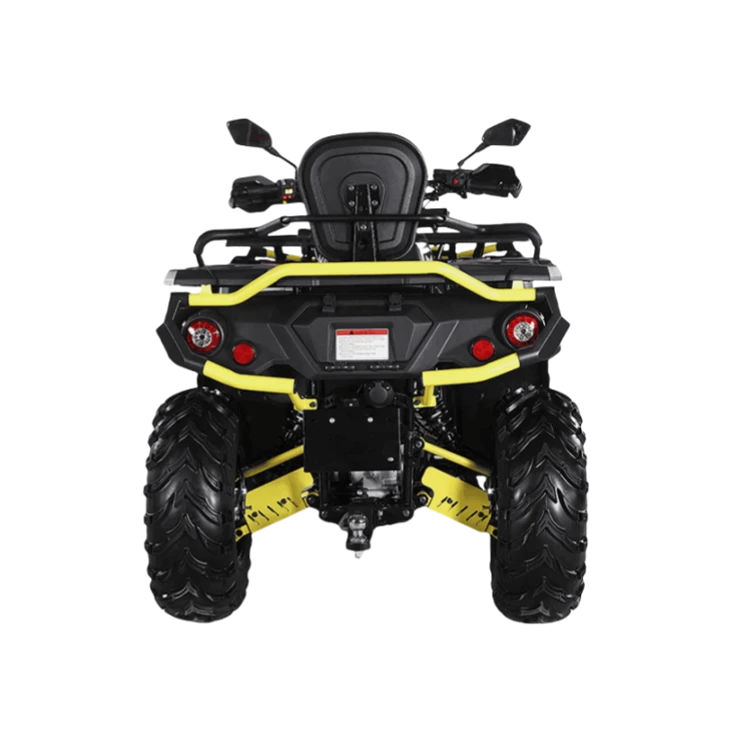

| Model | SW570-1 2 Seats ATV Vehicle |
|
Engine Type |
Single-cylinder , 4-stroke , 4 valves |
|
Transmission |
CVT/ L-H-N-R-P |
|
Compression ratio |
10.3 :1 |
|
Max Speed |
85 km/h |
|
Starting type |
Electric start |
|
Drive System |
2WD/4WD/Front differential lock |
|
Suspension Travel (mm/in) |
F: 166/6.54 R:172/6.77 |
|
Front Tires |
ATV 25 ×8- 12 |
|
Rear Tires |
ATV 25 ×10- 12 |
|
Rim |
Front：12*6 Rear 12*8 |
|
Length x Width x Height (mm/in) |
2200*1180*1270/86.6*46.5*50 |
|
Dry Weight (kg/lbs) |
365 kg/ 804lbs |
|
Gross Weight |
425kgs |
|
Front/Rear Rack Capacity |
F: 20kg / 44lbs R:40kg / 88lbs |
|
Payload |
205kg |
|
Certification |
EPA,T3a,T3b, EEC |
|
Package size(mm) |
2270×1150×843 |
|
Loading Quantity(Pcs) |
20FCL : 10PCS 40HQ : 30PCS |
Powerful & Efficient Engine
The 499cc liquid - cooled engine produces 29kW at 6750±500r/min, offering strong torque (44N·m) for climbing and hauling. Electronic Fuel Injection ensures precise fuel delivery, optimizing performance and economy.
Advanced Suspension & Braking
Double A - arm independent front/rear suspension with coil spring + oil damping absorbs impacts, providing a comfortable ride over rough terrain. Four - wheel hydraulic disc brakes (with rear wheel parking) ensure reliable stopping power.
Impressive Load & Towing
With a payload of 205kg and a pulling load of 150kg, it handles cargo like hunting gear or farm tools. Front/rear rack capacities (20kg/40kg) add to its utility.
Global Certifications
Certified by EPA, T3a, T3b, and EEC, it meets strict emission and safety standards, making it legal for use in various countries and regions.
Key Advantages：
Multi - Region Compliance：Few ATVs offer such a broad range of certifications (EPA, T3a, T3b, EEC), making it a viable choice for international buyers and rental fleets.
Power - to - Weight Balance：The 39.4HP engine paired with a dry weight of 365kg delivers excellent power - to - weight ratio, enhancing acceleration and agility on trails.
Suspension Travel & Comfort：With a suspension travel of 166mm (front) and 172mm (rear), it absorbs large bumps and maintains stability, crucial for long - distance rides.
F&Q：
Q: What certifications does the SW570-1 2 Seats ATV Vehicle have?
A: It's certified by EPA, T3a, T3b, and EEC, ensuring compliance with emission and safety regulations in many markets.
Q: How fast can the SW570-1 2 Seats ATV Vehicle go?
A: It has a max speed of 85 km/h, though actual speed varies based on terrain, load, and riding conditions.
Product knowledge：
The liquid - cooled engine's design allows for higher power output without overheating, making it suitable for aggressive riding. The 2WD/4WD system with front differential lock lets riders switch between modes for efficiency (2WD) or traction (4WD). The electronic fuel injection system adjusts fuel delivery based on engine speed and load, improving throttle response. The suspension travel (distance wheels move vertically) determines how well the ATV handles large obstacles.
