Parameter list
|
Model |

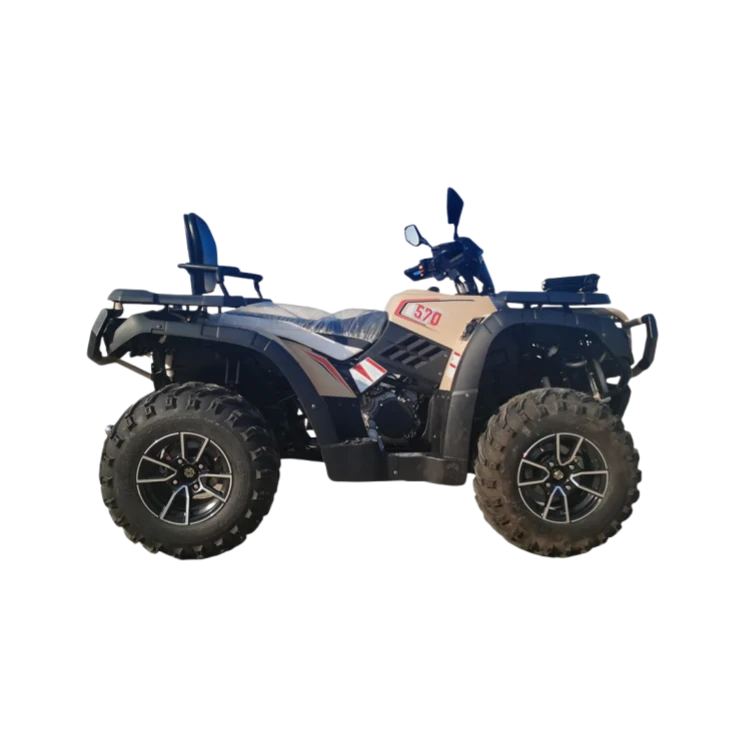

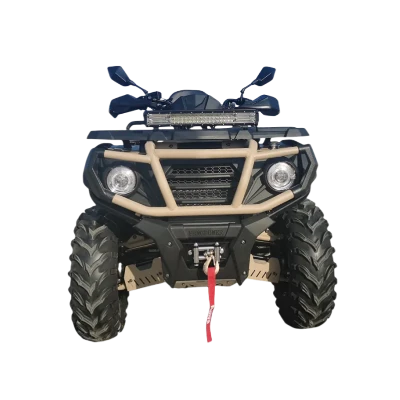

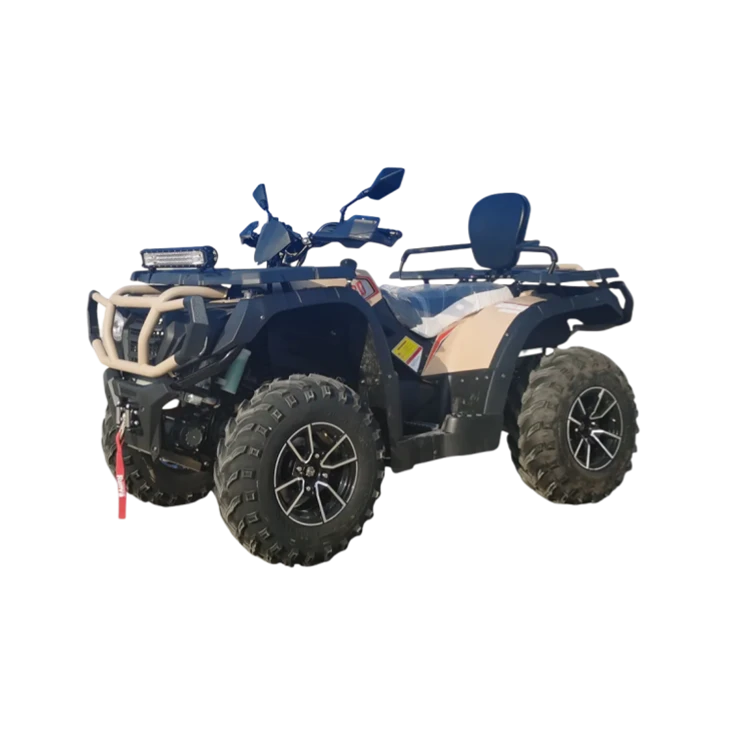

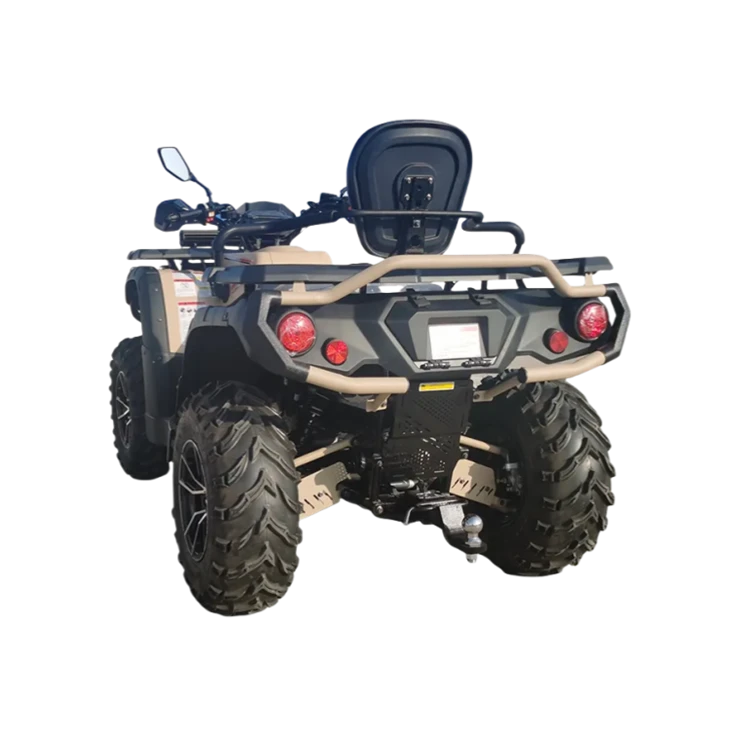

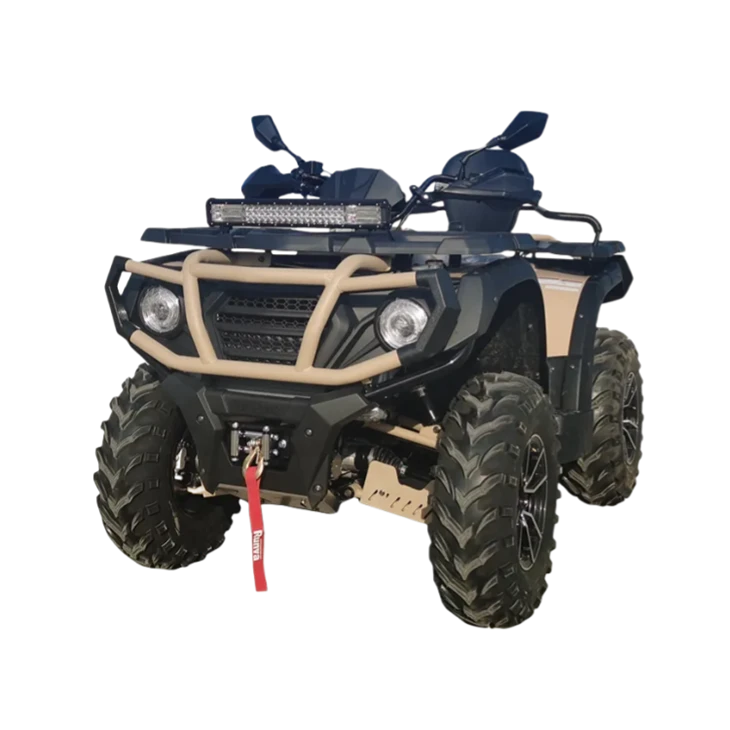

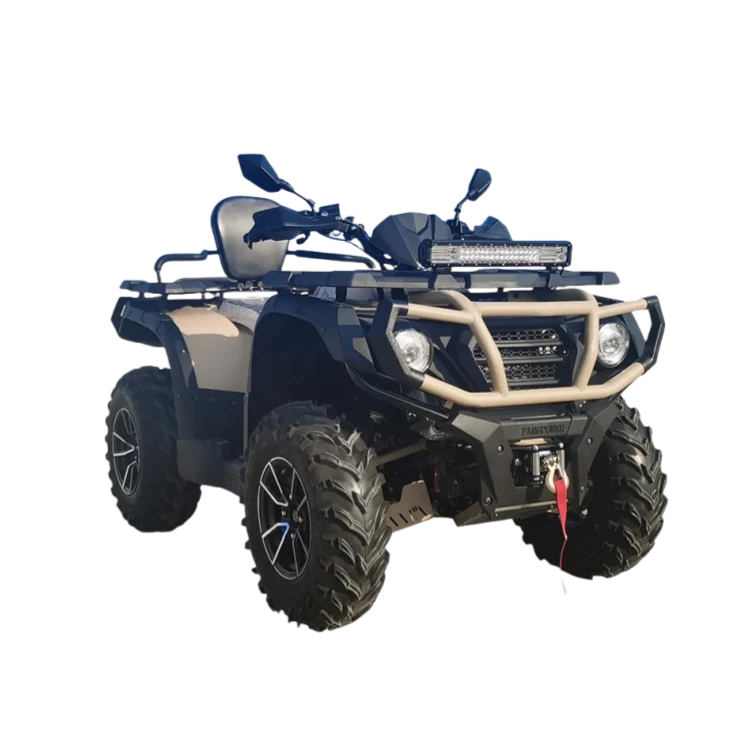

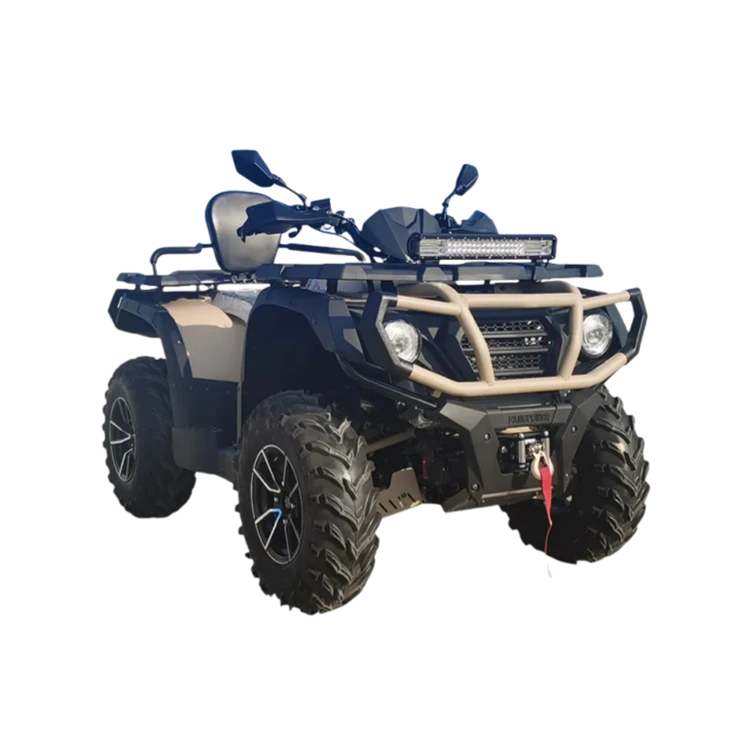

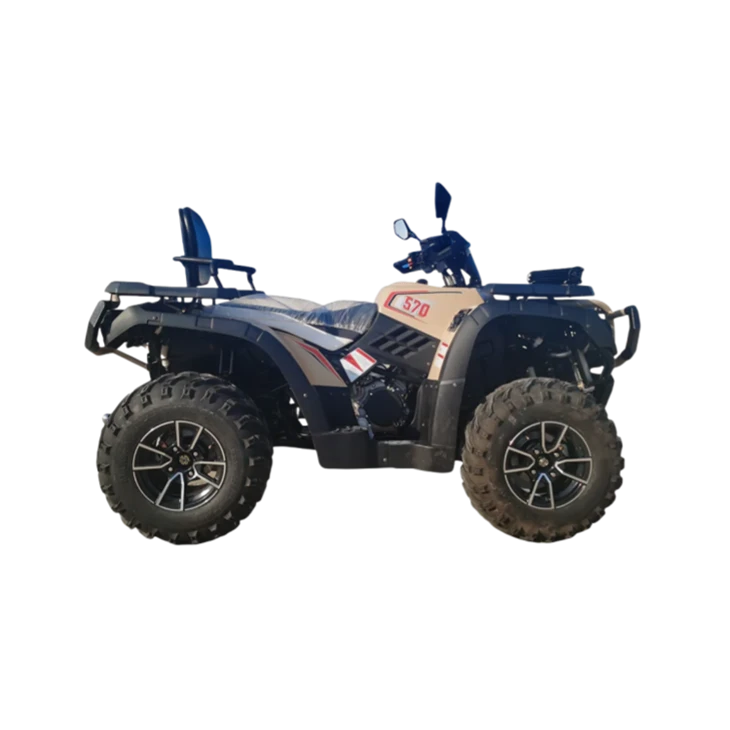

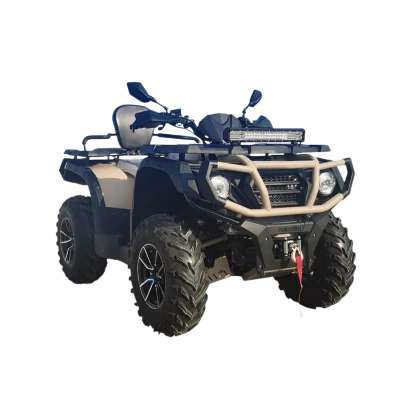

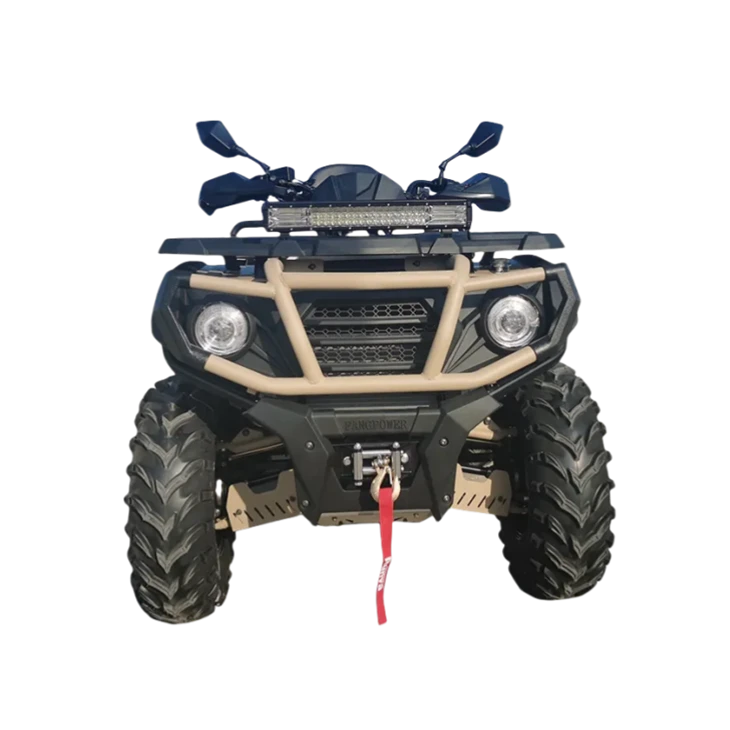

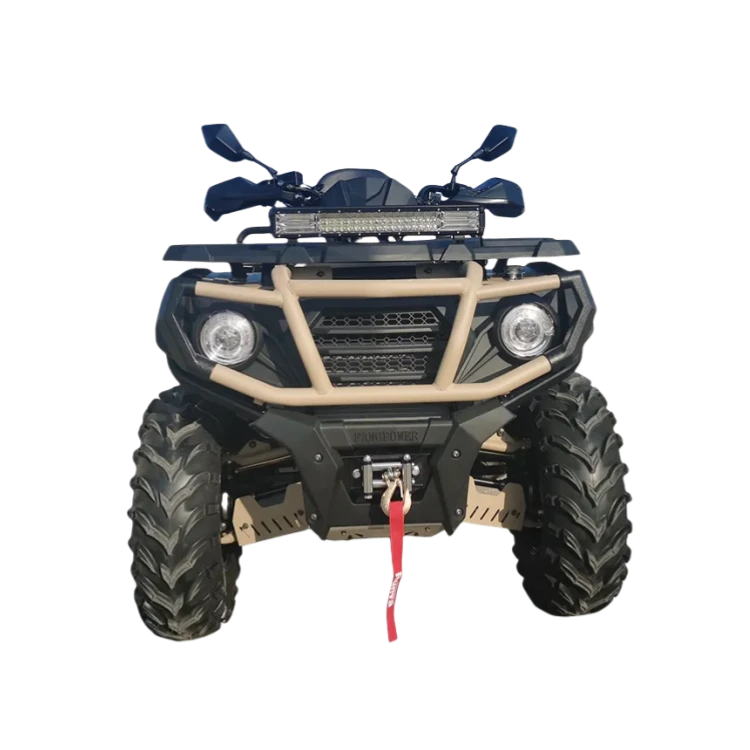

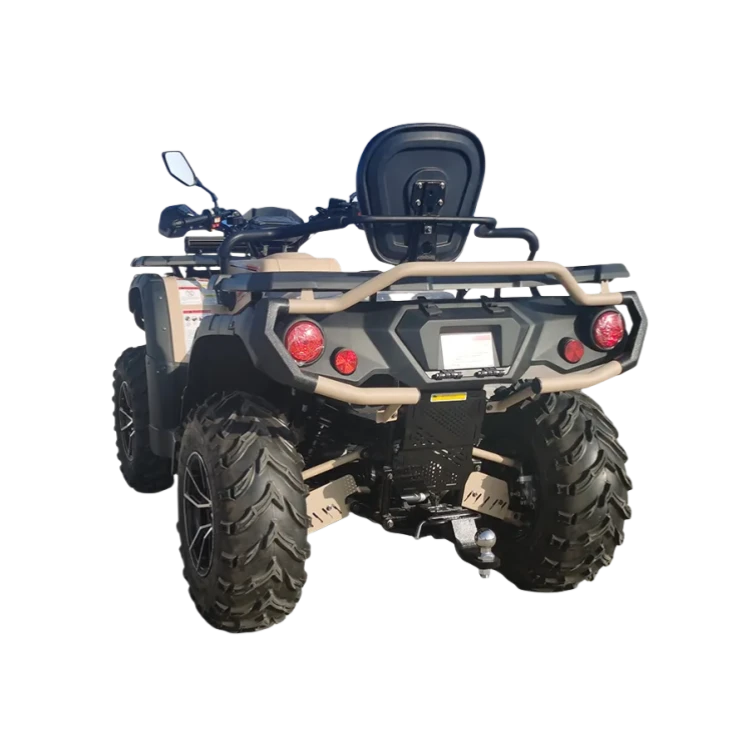

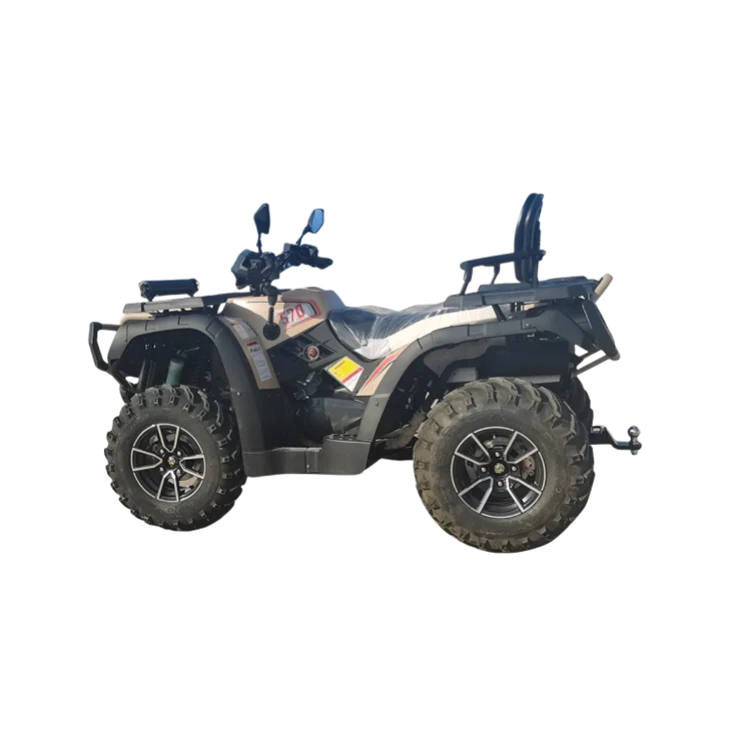

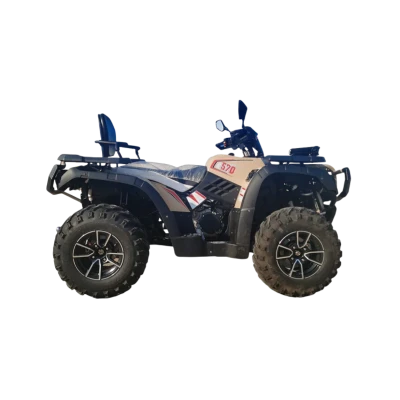

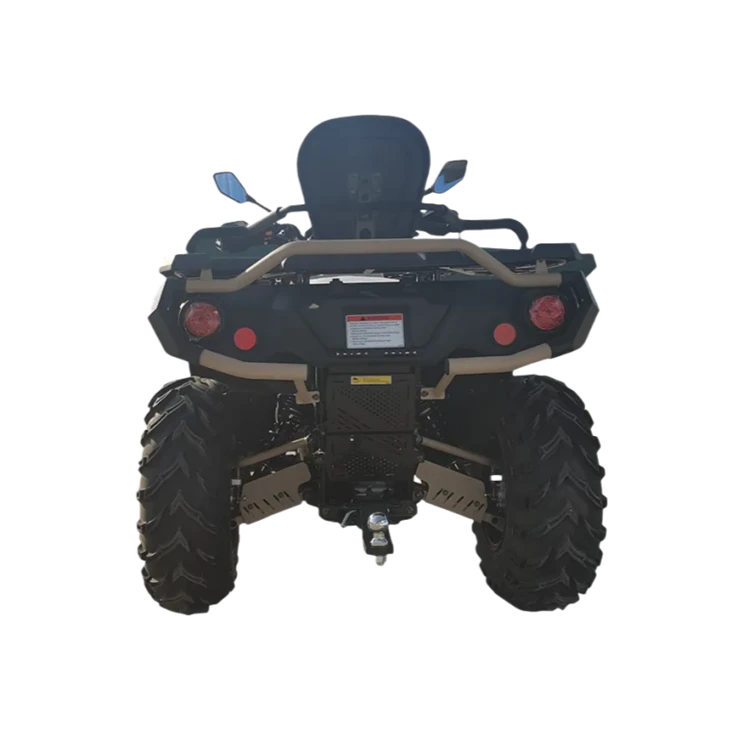

SW570-2 Off Road ATV Vehicle |
|
Engine Type |
Single-cylinder , 4-stroke , 4 valves |
|
Fuel Supply |
Electronic Fuel Injection |
|
Transmission |
CVT/ L-H-N-R-P |
|
Compression ratio |
10.3 :1 |
|
Max Speed |
85 km/h |
|
Drive System |
2WD/4WD/Front differential lock |
|
Front /Rear Suspension |
Double A-arm independent suspension |
|
Front/Rear Shock Absorber |
Coil spring + oil damping |
|
Front/Rear Brakes |
Four wheel hydraulic discs rear wheel parking |
|
Suspension Travel (mm/in) |
F: 166/6.54 R:172/6.77 |
|
Front Tires |
ATV 25 ×8- 12 |
|
Rear Tires |
ATV 25 ×10- 12 |
|
Rim |
Front：12*6 Rear 12*8 |
|
Length x Width x Height (mm/in) |
2200*1180*1270/86.6*46.5*50 |
|
Gross Weight |
425kgs |
|
Front/Rear Rack Capacity |
F: 20kg / 44lbs R:40kg / 88lbs |
|
Payload |
205kg |
|
Certification |
EPA,T3a,T3b, EEC |
|
Package size(mm) |
2270×1150×843 |
|
Loading Quantity(Pcs) |
20FCL : 10PCS 40HQ : 30PCS |
Proven Performance Heritage
Powered by the same 499cc liquid - cooled engine as the SW570-1, it delivers 29kW (39.4HP) and 44N·m of torque, ensuring consistent power for climbing, hauling, and high - speed driving (85km/h max).
Distinctive Styling & Protection
Unique front/rear guards and color accents set it apart visually, while also providing extra protection against trail debris and minor impacts.
Robust Suspension & Braking
Inheriting the double A - arm independent suspension and four - wheel hydraulic disc brakes, it offers a smooth ride and reliable stopping power, identical to the SW570-1's capable setup.
Global Compliance & Utility
Like the SW570-1, it holds EPA, T3a, T3b, and EEC certifications, ensuring legality in diverse markets. Its 205kg payload and 150kg pulling capacity support work and adventure needs.
Key Advantages：
Aesthetic Customization：The SW570-2 Off Road ATV Vehicle's unique styling (e.g., contrasting body panels, specialized guards) appeals to riders seeking a personalized look, distinguishing it from the more "standard" design of the SW570-1.
Shared Performance, Unique Identity：While sharing the SW570-1's proven engine and drivetrain, its distinct appearance creates a separate market niche, attracting style - conscious buyers.
Protective Design Enhancements：The added body guards not only look bold but also offer practical protection, reducing damage from rocks and branches during off - road excursions.
F&Q：
Q: What's the difference between the SW570-1 and SW570-2 Off Road ATV Vehicle?
A: The main difference is styling: the SW570-2 Off Road ATV Vehicle has unique body accents and guards, while the SW570-1 has a more standard design. Performance and core specs are identical.
Q: Is the SW570-2 Off Road ATV Vehicle suitable for work tasks?
A: Yes, with a 205kg payload, 150kg pulling capacity, and rugged build, it handles farm, ranch, or utility work effectively.
Product knowledge：
The shared engine and drivetrain with the SW570-1 mean proven reliability and performance. The aesthetic upgrades (guards, accents) are designed using durable materials to withstand off - road abuse. The liquid - cooling system, 2WD/4WD with differential lock, and suspension setup are identical to the SW570-1, ensuring consistent off - road capability. The protective elements are integrated into the design, balancing style and functionality.
