utv for snow plowing

utv for snow plowing

The utv for snow plowing is specially designed for icy and snowy environments and is a snowmobile that combines high performance and safety. Its unique design aims to allow drivers to enjoy the pleasure of free driving in icy and snowy conditions, while also meeting the needs of various snow operations.
Send Inquiry
Description

Parameter list

Model

utv for snow plowing

Certification

EPA

Loading information

2units/20″;; 16units/40HQ

Engine type

4 - stroke,Single - Cylinder, Water - cooled

Horse Power

18KW ( 6500rpm) 25HP

Valve Configuration

SOHC

Fuel Delivery System

EFI

Choke System

Automatic

Fuel capacity

9.5L (2.1 Gallon)

Transmission

CVT

Final Drive

Shaft - drive

Starting system

Electric start

Ignition system

D.C.D.I

Suspension Front

Double A - arm Suspension

Suspension Rear

Fang power 4 - Link® bar Rear Suspension

Brakes Front&Rear

220MM Front Dual Hydraulic Disk

Front Tread

1380mm

Rear Tread

1520mm

Wheelbase

1980mm (78in)

Tire(F/R)

25x8 - 12 / 25x10 - 12

Top speed

75km/h

Dry weight

500KGS

Gross weight

560kgs

Vehicle dimension(L×W×H)

3250x1520x1750mm

Packing size

2980x1400x815mm

COLOR

Red/Blue/ Orange/Green

Steel Roof&door

Standard

windshield

Standard

Full bumper

Standard

Roof light bar

Standard

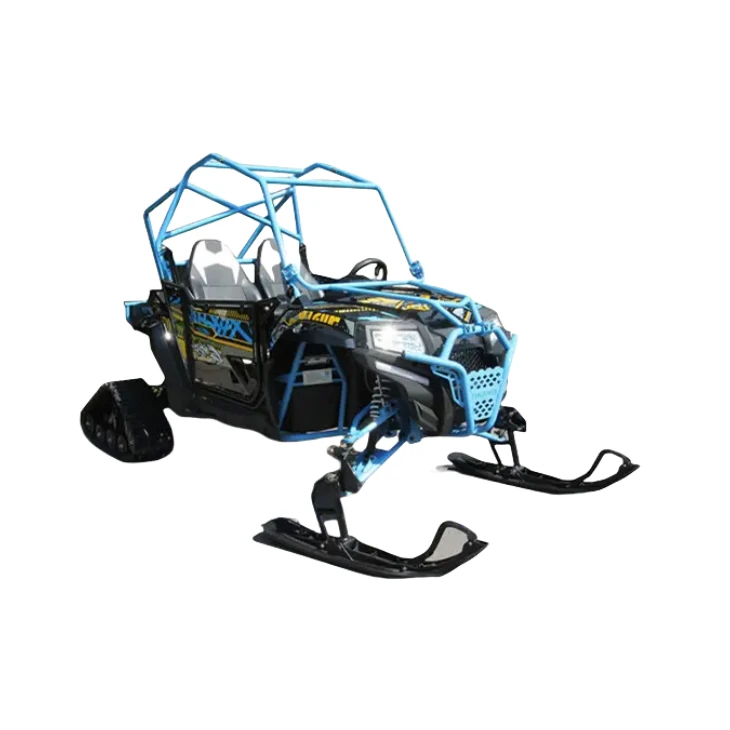

4 2

Ultra-fast snow driving experience



The utv for snow plowing, with its aerodynamically optimized body design and extremely low drag coefficient, brings drivers ultimate speed and excitement. Equipped with a precise and sensitive steering system, it can easily achieve high-speed cornering and fully enjoy the pleasure of driving in the snow.

Deep snow crossing ability



Thanks to the wide tracks and powerful engine, the vehicle can freely navigate through the snow, easily conquering steep snow slopes and complex snow terrains. It is a reliable companion for snow adventure enthusiasts to venture deep into uninhabited areas.

4 3

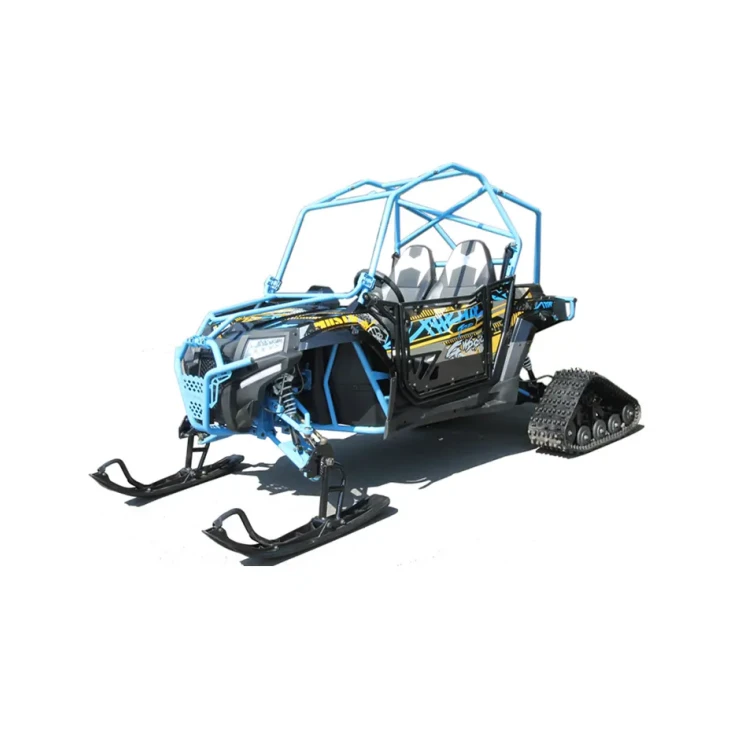

4 6

Convenient maintenance



The engine compartment is compactly and reasonably designed, with clear layout of each component, facilitating daily inspection and maintenance. The key components adopt a modular design, allowing for quick replacement of faulty modules during maintenance, significantly reducing maintenance time, lowering maintenance costs, and ensuring the reliability of the vehicle in frequent winter usage scenarios.



Product usage scenarios

1. Snow entertainment: Ski resorts, snow parks and other places are available for tourists to experience the thrilling fun of snow driving.

2. Snow rescue: In mountainous areas and the wild with deep snow, it is used to carry out rescue operations and quickly reach the rescue site.

3. Winter Patrol: Forest farms, nature reserves, etc. can use it for daily patrols in winter to promptly detect any abnormal situations.



Product knowledge

1. Power system: Its 4-stroke single-cylinder water-cooled engine has undergone in-depth optimization for starting performance in low-temperature environments. Equipped with an independent low-temperature preheating system, it can quickly raise the engine temperature in extremely cold weather, enabling easy ignition and start-up. With a power output of 18KW (25HP), combined with a CVT transmission specially tuned for snow conditions, it can provide stable and suitable power transmission under different snow depths and slopes.

2. Tracks and Suspension: The utv for snow plowing adopts wide-width and deep-toothed special snow tracks. The track material has the property of anti-embrittlement at low temperatures and can still maintain good flexibility and wear resistance in low-temperature environments. The tension adjustment system inside the track can automatically adjust the track tension according to the actual driving road conditions, preventing the track from falling off or becoming overly loose. Both the front double A-arm suspension and the rear independent suspension system are equipped with large-travel shock absorbers, which can effectively filter out snow bumps, ensuring smooth driving and enhancing driving comfort.

3. Insulation and Safety System: The utv for snow plowing cockpit is equipped with comprehensive insulation facilities, which can keep the temperature inside the cockpit within a comfortable range. Meanwhile, the vehicle is equipped with multiple safety protection devices, such as high-strength roll cages, front and rear anti-collision buffer devices, three-point seat belts, and emergency braking systems, providing reliable safety guarantees for drivers when driving at high speeds or in complex snow environments.



F&Q:

Q1: Can the Electric Start utv for snow plowing run normally in the snow? ​

A: With specially designed tracks and strong power, it can easily cross the snow. ​

Q2: How to start a vehicle in a low-temperature environment? ​

A: The Gasoline Powered utv for snow plowing is equipped with an automatic choke and a low-temperature start optimization system. In a low-temperature environment, first insert the key to turn on the power, wait for the system self-check to complete, and then start normally. There is no need for additional preheating operations. ​

Q3: How often does the track need to be replaced? ​

A: The replacement cycle of the tracks depends on the frequency of use and road conditions. It is recommended to check the wear of the tracks and replace them if necessary. ​

Q4: How is the vehicle's heat preservation effect? ​

A: The cockpit insulation configuration can quickly raise the cabin temperature, providing the driver with a comfortable driving environment even in extremely cold weather.
